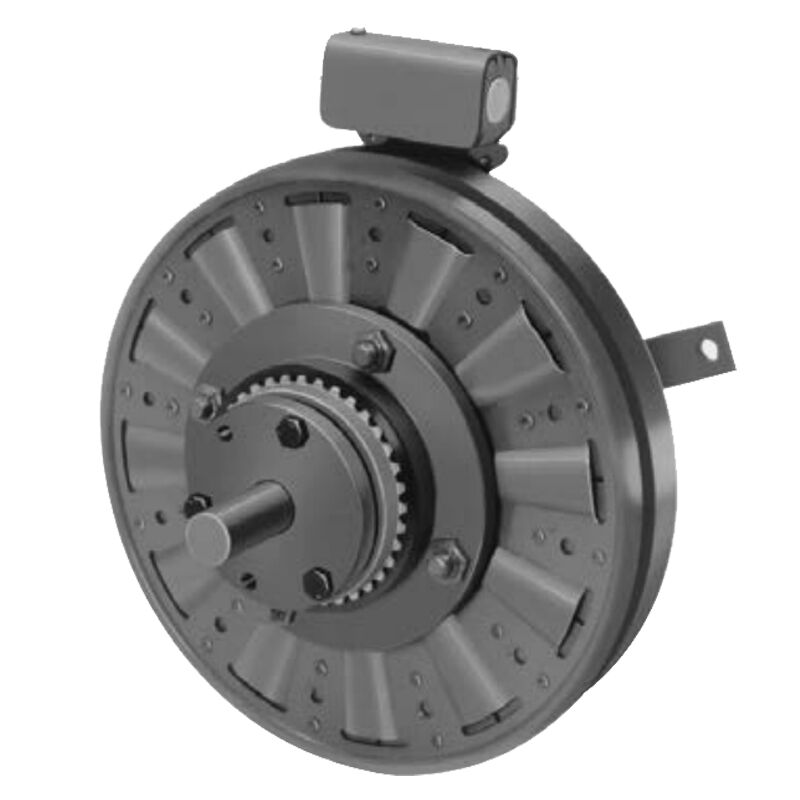

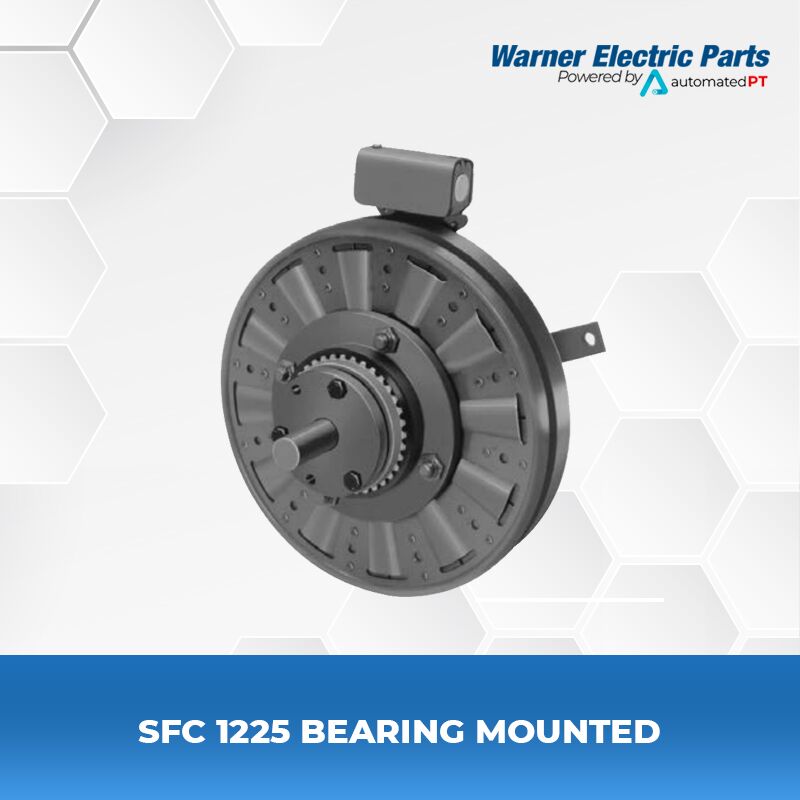

Warner Electric SFC 1225 Bearing Mounted
- SFC 1225 Series
- Model Size: sfc-1225
- Voltage: 6/24/90 VDC
- Static Torque: 465 lb. ft.
- Max RPM: 2,200 rpm
The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.
SPECIFICATIONS
| Model Name | SFC 1225 Bearing Mounted |
| Function | Stationary Field Clutch Coupling |
| Armature Shaft | .750 – 2.687 |
| Rotor Shaft | .500 – 2.500 |
| Static Torque | 465 lb.ft. |
| Max. RPM | 2,200 rpm |
| Standard Voltage | DC 6,24, 90 |
| Outside Diameter | 12.50 Inches |
| Overall Length | 6.5 Inches |

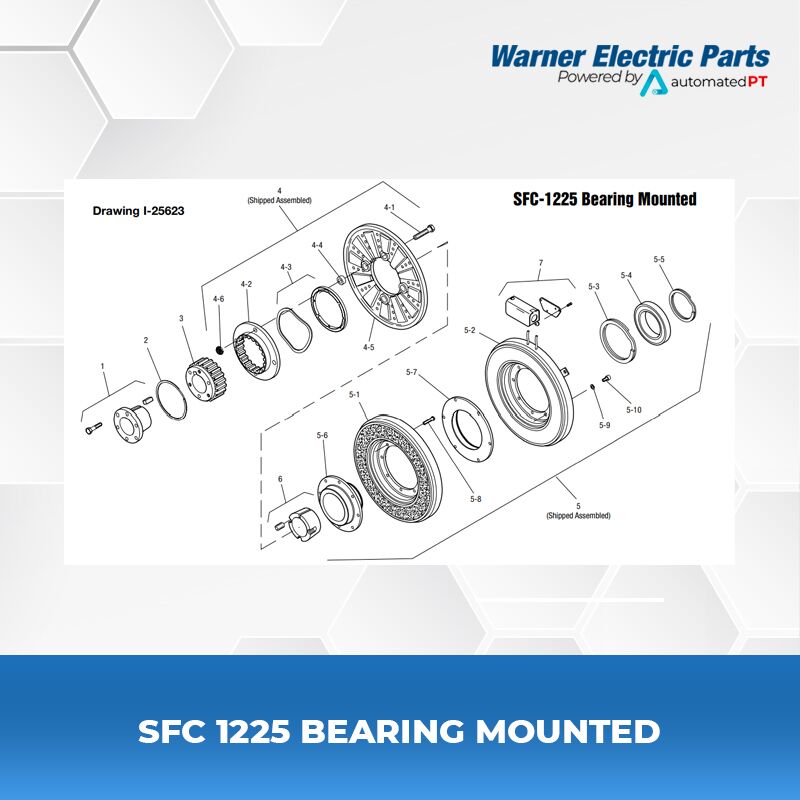

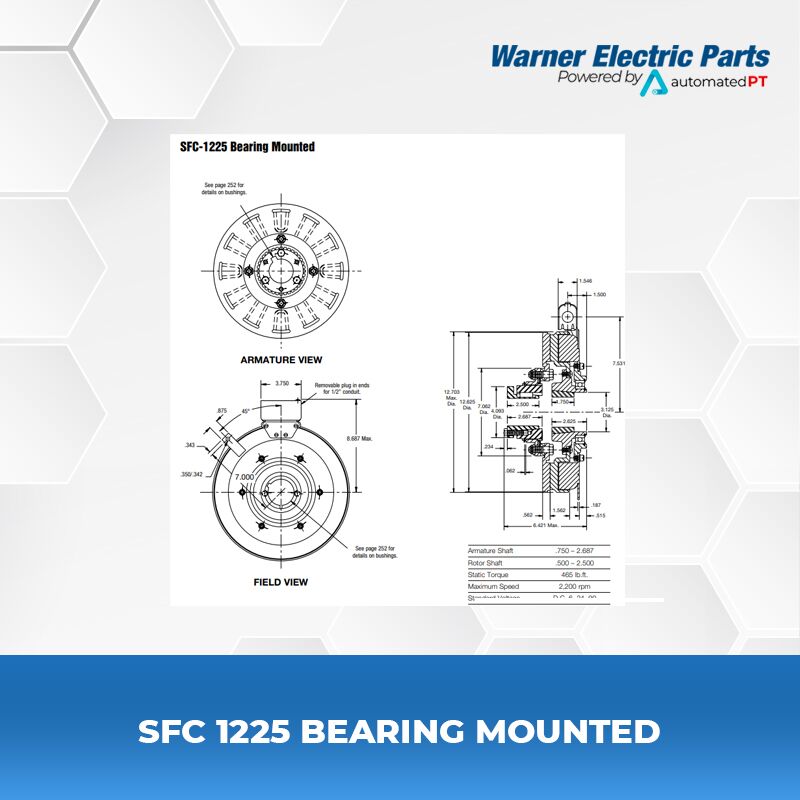

| Manufacturer Drawing | I-25623 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SFC-1225-BM Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SFC-1225-BM-Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 1.
2. Specify Bore Size for Item 6.
3. Specify Voltage for Item 5.
4. See Controls Section.
Example:
SFC-1225 Clutch Coupling per I-25623 – 90 Volt, 1” Bore
| SFC-1225 Bearing Mounted Parts List | |||
| Item | Description | Part # | Qty. |
| 1 | Bushing* | 1 | |
| 3/4″ to 2-11/16″ Bore | 180-0026 to 180-0057 | ||
| 2 | Retainer Ring | 748-0005 | 1 |
| 3 | Splined Hub | 540-0064 | 1 |
| 4 | Armature & Splined Adapter | 5203-111-001 | 1 |
| 4-1 | Capscrew | 797-0341 | 4 |
| 4-2 | Splined Adapter | 104-0010 | 1 |
| 4-3 | Autogap Accessory | 5323-101-002 | 1 |
| 4-4 | Spacer | 266-0004 | 4 |
| 4-5 | Armature | 5323-111-034 | 1 |
| 4-6 | Locknut | 661-0005 | 4 |
| 5 | Field & Rotor Assembly | 1 | |
| 6 Volt | 5203-452-009 | ||
| 24 Volt | 5203-452-011 | ||
| 90 Volt | 5203-452-012 | ||
| 5-1 | Rotor | 1 | |
| Standard Friction Material | 5203-751-001 | ||
| Optional LK Facing | 5203-751-004 | ||
| 5-2 | Field & Bearing Assembly | 1 | |
| 6 Volt | 5203-451-034 | ||
| 24 Volt | 5203-451-036 | ||
| 90 Volt | 5203-451-037 | ||
| 5-3 | Retainer Ring | 748-0119 | 1 |
| 5-4 | Ball Bearing | 166-1047 | 1 |
| 5-5 | Retainer Ring | 748-0011 | 1 |
| 5-6 | Rotor Hub | 540-1304 | 1 |
| 5-7 | Buttonhead Capscrew | 797-1261 | 6 |
| 5-8 | Ring Adapter | 748-1591 | 1 |
| 5-9 | Lockwasher | 950-0359 | 6 |
| 5-10 | Socket Head Capscrew | 797-0424 | 6 |
| 6 | Bushing* | 1 | |
| 1/2″ to 2″ Bore | 180-0185 to 180-0217 | ||
| 7 | Conduit Box | 5200-101-012 | 1 |
