Warner Electric 5131-273-010 EP Series

PRODUCT DESCRIPTION

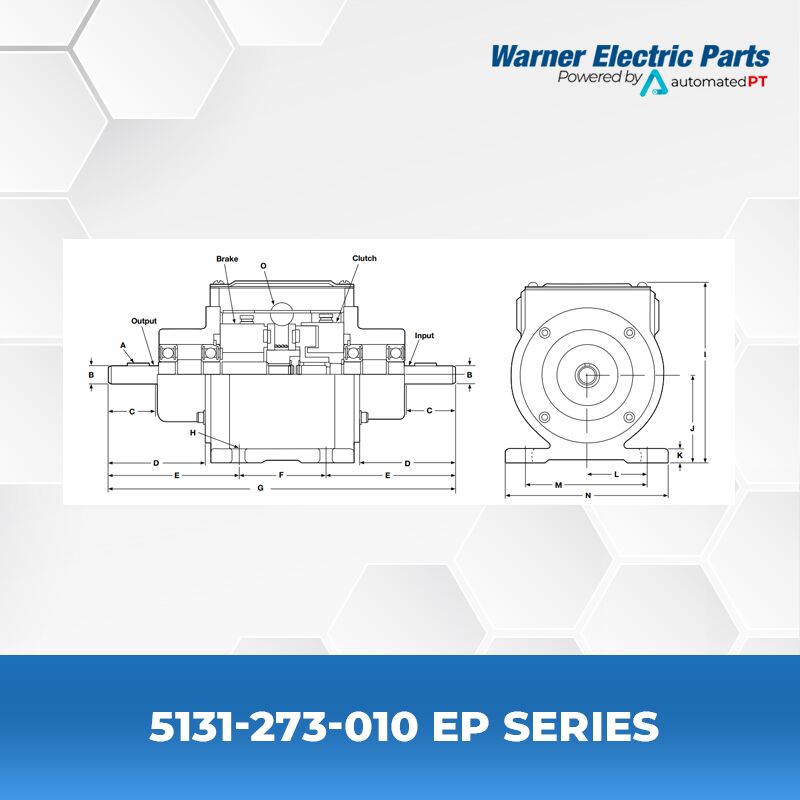

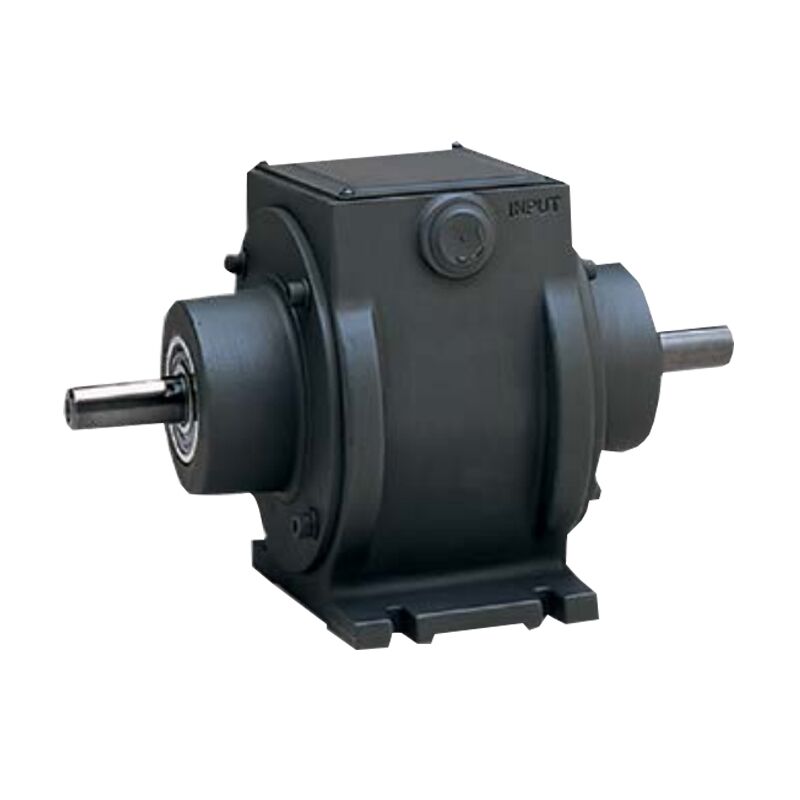

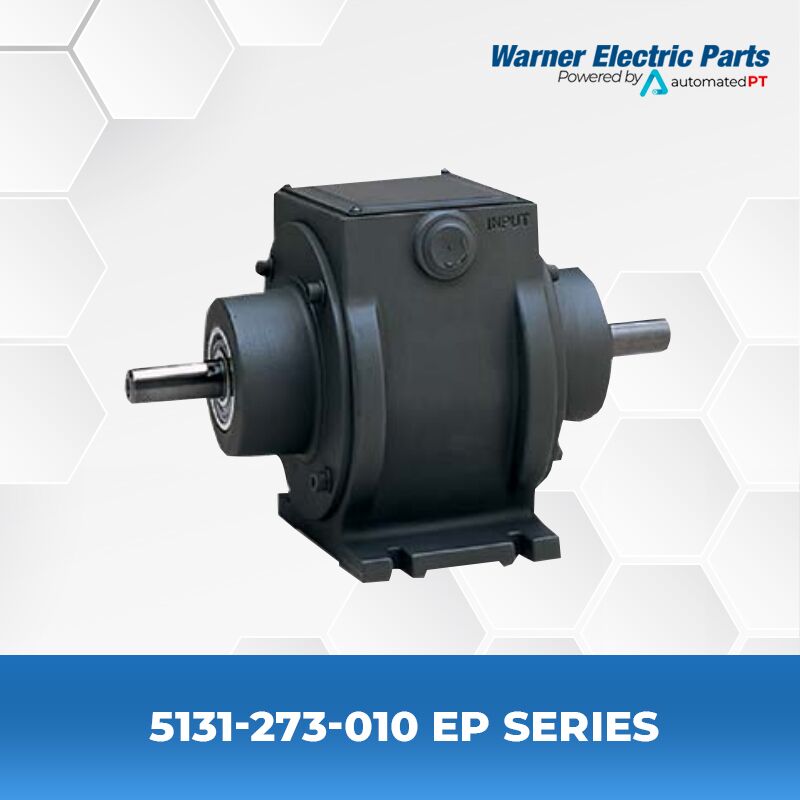

The Warner Electric 5131-273-010 (EP-400) is a rugged, pre-assembled clutch and brake combination contained in a totally enclosed, foot-mounted housing. This “bolt-it-down and wire-it-up” design simplifies installation by providing a factory-aligned unit that eliminates the need for complex field assembly. The enclosed housing protects internal friction surfaces from environmental contaminants while keeping wear particles contained, making it an ideal solution for contamination-sensitive applications.

FEATURES

• Total Protection: Enclosed housing keeps contaminants out and wear particles in.
• Maintenance Free: Never requires lubrication and automatically self-adjusts for friction face wear.
• Pre-Packaged Convenience: Over 20 major components are pre-engineered and factory-assembled into a single unit.
• Precise Performance: Factory alignment ensures maximum start-stop performance and consistent torque.
• Versatile Compatibility: Designed to mate easily with industry-standard motors and reducers using v-belts, pulleys, or sprockets.
• Reliable Drive: Features heavy-duty bearings on the clutch input shaft for extended industrial life.

SELECTION PROCEDURE

1. Determine Shaft Speed: Identify the RPM at the Electro Pack mounting location.
2. Check Horsepower: Analyze the horsepower requirement of the application.
3. Size Verification: Use the intersection of horsepower and speed on standard selection charts to confirm EP-400 is the correct size.
4. Torque Check: Ensure the static torque rating (270 lb. in.) meets the load movement and stopping requirements.

HOW TO ORDER

• Specify Base Unit: Use Part Number 5131-273-010 for the 24V DC version of the EP-400.
• Verify Voltage: Ensure the power supply matches the 24V DC coil requirement.
• Accessories: For high-cycle applications, verify if specialized external controls are needed to optimize response times.
• Control Pairing: Recommended for use with Warner Electric adjustable controls to achieve optimal start and stop positioning.
