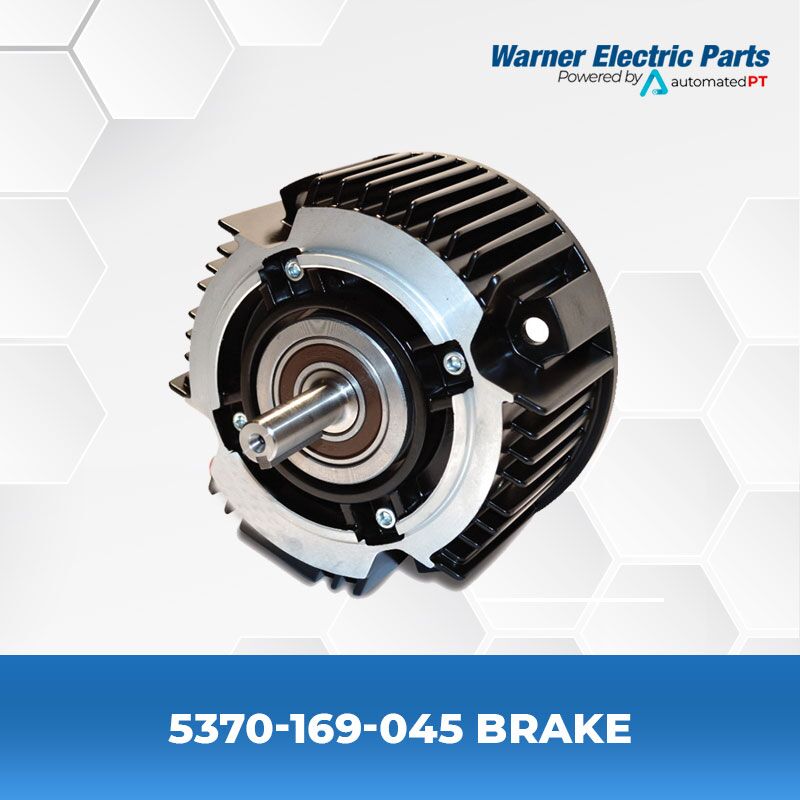

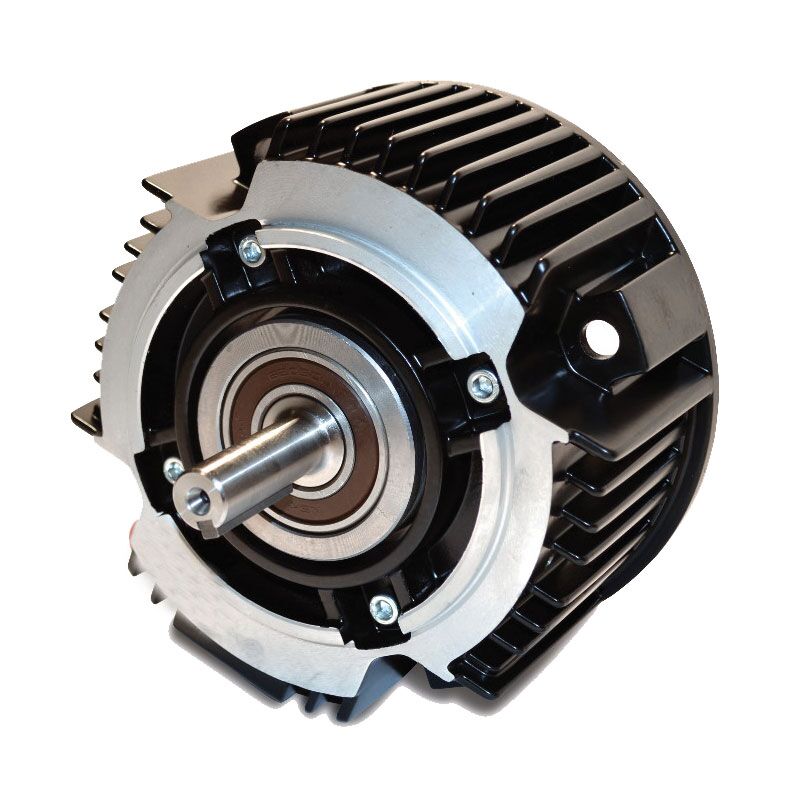

Warner Electric 5370-169-045 Brake

  • 5370-169-045
  • EM Series
  • Model Size: EM-50
  • Voltage: 24 VDC
  • Static Torque: 16 lb. ft.
  • Max RPM: 3600
  • NEMA Frame Size: 56C/48Y

Model No. – EM-50-20
Voltage D.C. – 24
GEN 2 Part No – 5370-169-203
Original Part No – 5370-169-045

Electro Module
Individual Clutch and Brake Modules

EM Series
Modular Components that are Easily Combined

5 sizes
16 clutch and brake modules
16 to 95 lb. ft. torque range
Individual modules may be used in combination to form clutches, brakes or clutch/brake packages.

Electro Modules can be bolted directly to NEMA C-face motors or reducers, or base mounted for stand alone operation.

Accessories Warner Electric
Electro Modules can be fitted with several accessories to extend their capacity and ease of mounting.

a. Conduit Box – NEMA 4 and UL listed, available in standard and washdown versions.

b. Mounting Brackets – Two styles of mounting brackets are available for simplified installation. The base mount is used with the 20/30 and 30/40 configurations. A motor mount is also available and provides sturdy support for 20, 10/20 and 10/40 units and motor.

c. Cover Kit – For sizes 50, 100 & 180
Each cover kit includes two (2) vent covers, two (2) gaskets and four (4) screws needed to convert a vented design into an enclosed design. For brake only modules, a cover plate is included to enclose the back of the brake.

Accessories
Description EM Size Part No
Conduit Box All sizes 5370-101-042
Base Mount Kit
for 2030, 3040		 50/100
180
210/215		 5370-101-004
5370-101-002
5371-101-001
Motor Mount Kit
for 20, 1020, 1040		 50/100
180
210/215		 5370-101-078
5370-101-079
5371-101-012
Cover Kit 50/100/180
50/100/180 (20 or 20MB)		 5370-101-076
5370-101-082

Gen2 units are direct replacements for original models

  • Changes to the housing fin design increases heat dissipation capacities, especially in the enclosed configuration of the UniModule.
  • Improved input to output axis design reduces vibration and improves noise and wear factors.
  • Use of custom designed mounting bolts allows for conduit box location directly on top of the unit.
  • Bolt hole patterns are re-positioned for ease of mounting.
  • Add-on enclosure cover kits allow for a unit to be upgraded to an enclosed unit in the field without replacing the clutch/brake. A cover plate bolts to both sides of the unit creating a completely enclosed brake package, which keeps contaminates out and wear particles in, for clean, quiet operation.

Manuals and Specifications

pdf icon 1
Catalog Warner Electric EM Series Electro Module Catalog
Service Parts Warner Electric EM Series Electro Module Service Parts
