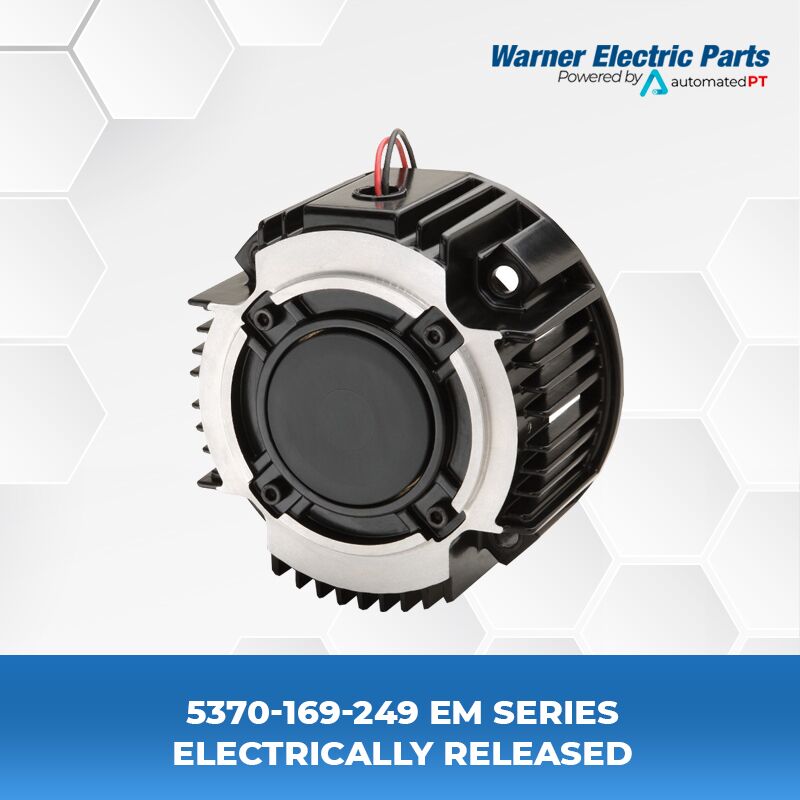

Warner Electric 5370-169-249 EM Series Electrically Released

EM-FBB, EM-FBC, EM-MBFB Selection

Model No. – EM-50-20MBFB
Voltage D.C. – 90
GEN 2 Part No – 5370-169-249
Original Part No – 5370-169-060

Warner Electric Electrically ReleasedEMseries Electro Modules are available in three styles. The EM-FBB Brake Module is used in brake only applications and mounts between a C-face motor and a gear box or reducer. The EM-MBFB Motor Brake Module mounts to the back of a double shafted motor. The EM-FBC Brake Module is combined with a motor clutch (EM-10) or an input clutch (EM-30) for clutch/electrically released brake applications.

Note: Care must be exercised when
selecting a brake to ensure it is sized
properly for your application.

Product Data – Reference (Pages 159-164) in catalog P-1234

Accessories
Description EM Size Part No
Conduit Box All sizes 5370-101-042
Base Mount Kit
for 2030 FBC
50/100
180
210/215
5370-101-004
5370-101-002
5371-101-019
Motor Mount Kit
for 20 FBB, 1020 FBC
50/100
180
210/215
5370-101-078
5370-101-079
5371-101-012
Cover Kit 50/100/180
50/180 (FBB or MBFB)
5370-101-076
5370-101-082

Gen2 units are direct replacements for original models

  • Changes to the housing fin design increases heat dissipation capacities, especially in the enclosed configuration of the UniModule.
  • Improved input to output axis design reduces vibration and improves noise and wear factors.
  • Use of custom designed mounting bolts allows for conduit box location directly on top of the unit.
  • Bolt hole patterns are re-positioned for ease of mounting.
  • Add-on enclosure cover kits allow for a unit to be upgraded to an enclosed unit in the field without replacing the clutch/brake. A cover plate bolts to both sides of the unit creating a completely enclosed brake package, which keeps contaminates out and wear particles in, for clean, quiet operation.

Click on the links below to see Drawings and Specs:

Warner Electric EM Series Electrically Released PDF
