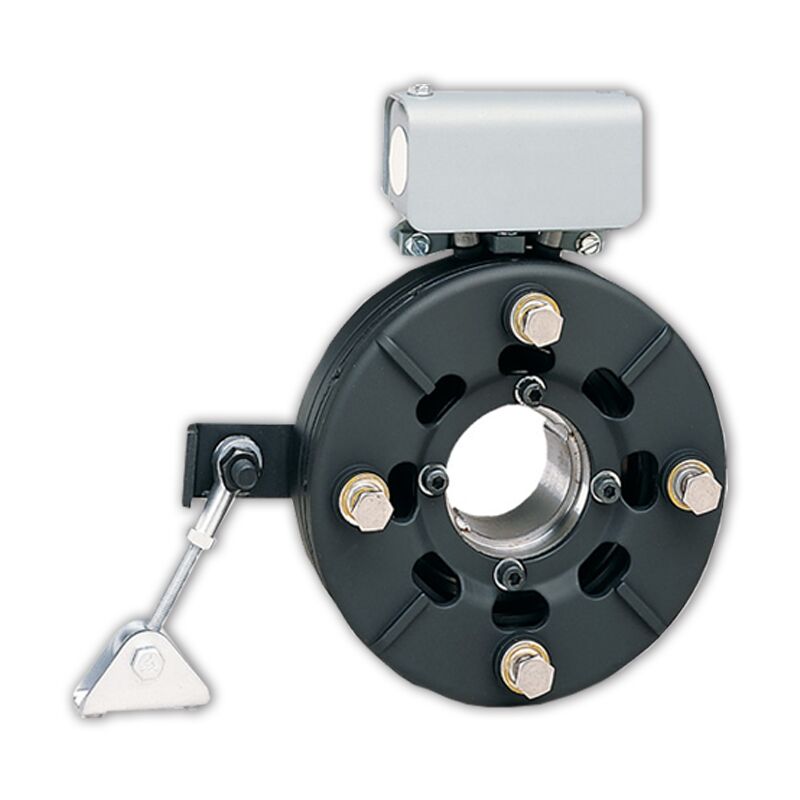

Warner Electric 5380-170-002 Electric Shaft Mounted Brake


Lead time - 1 Week +

  • 5380-170-002
  • Shaft Mounted
  • Model Size: EB-375
  • Voltage: 90 VDC
  • Static Torque: 16 lb. ft.
  • Max RPM: 5000
  • Bore Size: 5/8″

Model Size – EB-375
Bore Size – 5/8″
Voltage D.C. – 90
Part No – 5380-170-002


Electric Shaft Mounted Brakes – Electro Brakes
Electro Brakes mount directly on a motor or through shaft for basic braking functions.

Torque arm feature makes Electro Brakes easy to install on any through shaft or double shaft motor.

Segmented and fluted armature disc provides maximum cooling of friction surfaces.

Six sizes of clutches and brakes
16 lb. ft. to 465 lb. ft. torque range
Preassembled. Factory aligned.
Mounting flexibility
Simple to install

Manuals and Specifications

pdf icon 1
Specifications Warner Electric EB Series Electro Brake Catalog
Service Parts Warner Electric EB Series Electro Brake Service Parts
