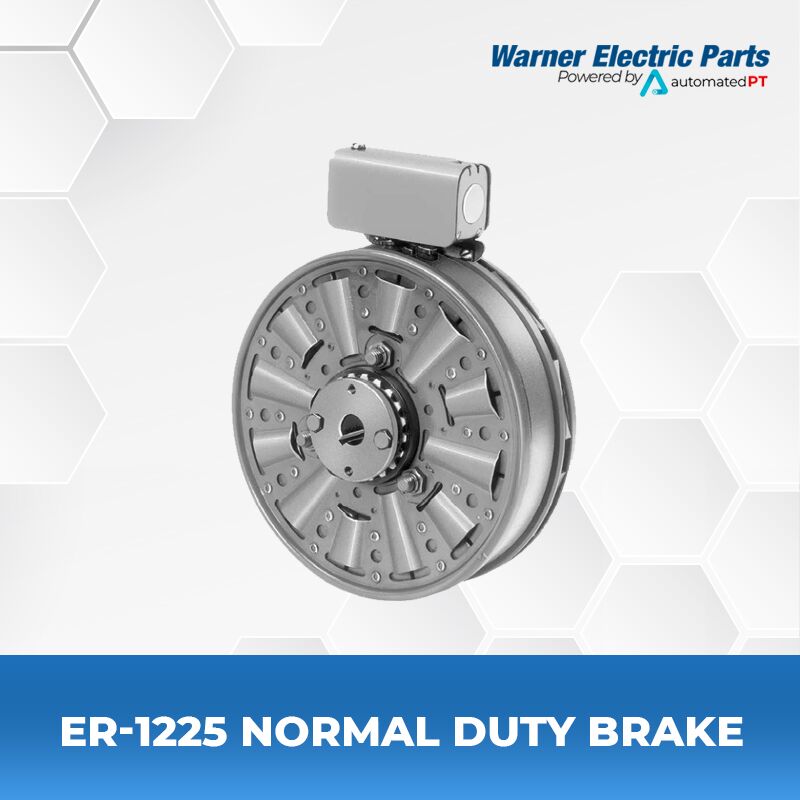

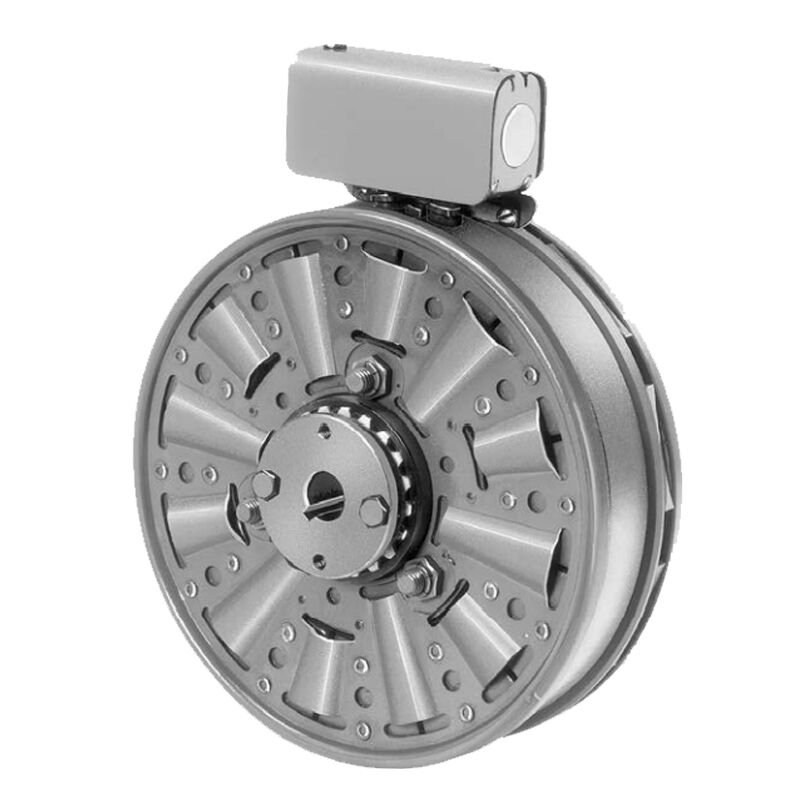

Warner Electric ER-1225 Normal Duty Brake

  • Model Number: ER-1225 Normal Duty
  • Series: ER
  • Bore Size:.937″ to 3.00″
  • Voltage: 90 VDC
  • Static Torque: 400 lb. ft.
  • Max RPM: 3000

Model No. – ER-1225 ND
Voltage D.C. – 90V
Bore Size – .937″ to 3.00″

ER-1225 ND Model Selection and Ordering
Is the ER-1225 ND the correct brake for you?
1.Verify that the brake will be cycled frequently in normal operation.
2. Use chart to verify ER-1225 ND is within RPM and Horsepower limits.

How To Order:
1. Specify Model Number : ER-1225 ND
2. Specify bore size : .500″ to 1.375″
3. Specify Mounting: Outside or Inside Mount

ER Series Description
ER brakes provide a permanent magnet engage/electrically released design. This brake must be engaged while the shaft is in motion. Shaft speed should be 100 RPM or greater when the brake is engaged. This style brake offers a bulkhead flange mounting system, the highest torque rating offered by Warner Electric in the power released series, high cycle rate capability, and excellent life. ER Series brakes are available in five sizes . Static torque ratings range from 10.5 lb.ft. to 400 lb.ft

Designed for Dynamic stopping operations
High Cycle rated capability

Looking for Parts for an ER-1225 ND?

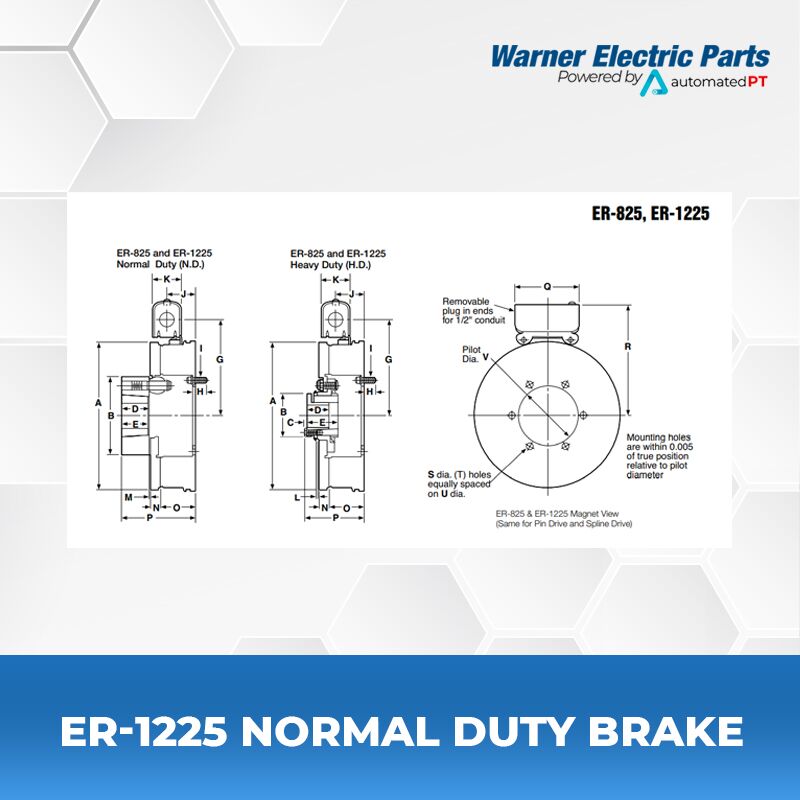

Warner Electric ER 375 Brake graph
ER 825 1225

ER-1225 ND Component Parts

Description Part Number
†Bushing 180-0262-180-0295
(15/16” to 3” Bore)
Armature Hub 540-0015
Mounting Accessory, I.M 5321-101-001
Magnet (I.M.) and Armature
sold only in matched pairs*
90V 5252-9
Terminal Accessory 5311-101-001
Autogap Accessory 5201-101-008
Conduit Box 5200-101-010

Manuals and Specifications

pdf icon 1
Catalog Warner Electric ER Series Electrically Released Brakes Catalog
Service Parts Catalog Warner Electric ER Series Electrically Released Brakes Service Parts Catalog
