Warner Electric PB-120
- PB Series
- Voltage: 6/24/90 VDC
- Static Torque: 5 lb.in.
- Max RPM: 10,000 rpm
- Shaft Size: .187 – .250

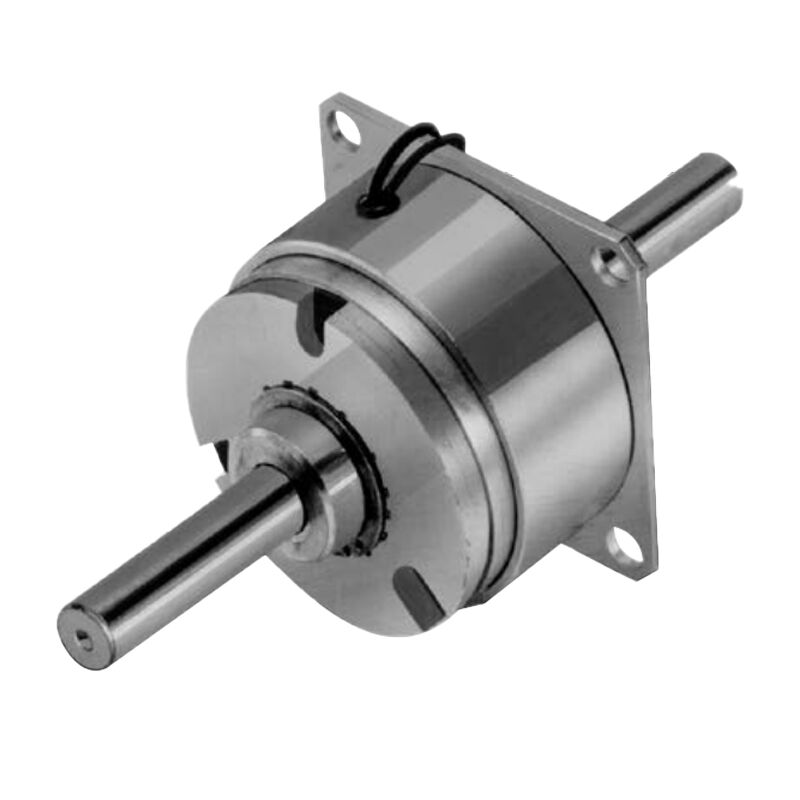

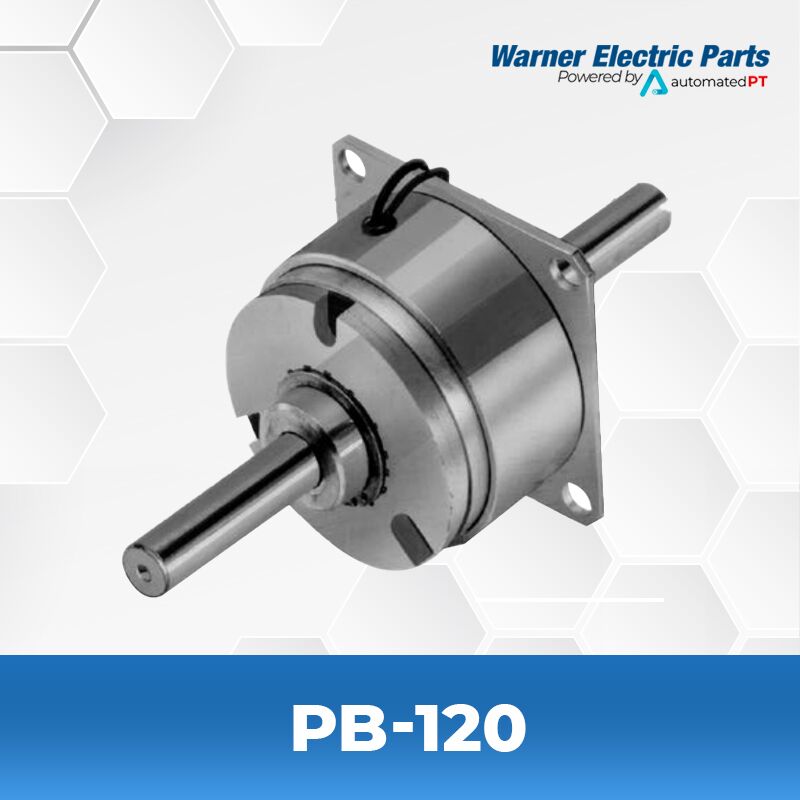

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.
SPECIFICATIONS
| Model Name | PB Series PB-120 |
| Function | Primary Brake |
| Shaft Size | .187 – .250 |
| Max. Rated Torque | 5 Lb. in |
| Max. RPM | 10,000 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 1.25 Inches |
| Overall Length | 1 Inch |

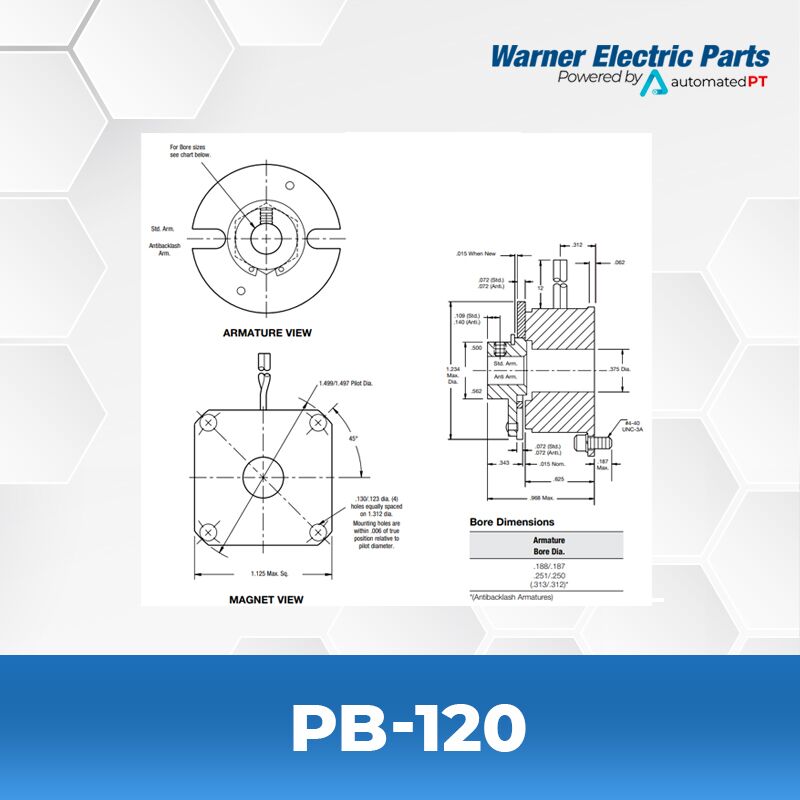

| Manufacturer Drawing | I-25507 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 |
||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PB-120 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PB-120 Quick Information |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B.
3. Specify Voltage for Item 3.
4. See Controls Section
Please provide the following along with your quote request
1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B.
3. Specify Voltage for Item 3.

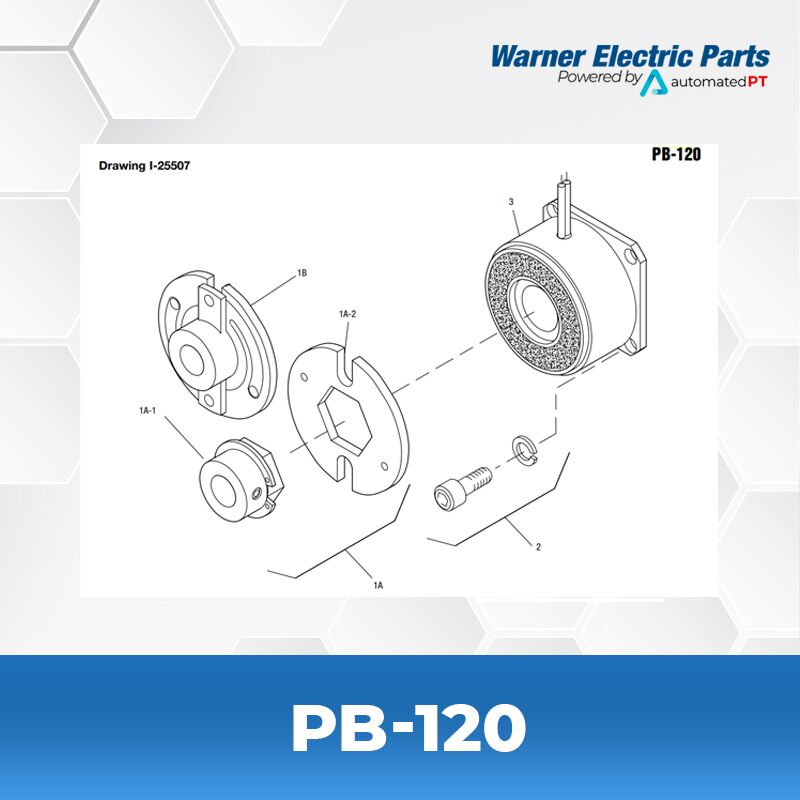

PB-120 Parts List
| Item | Description | Part Number | Qty. |
| 1A | Armature and Hub | ||
| 1A-1 | Armature Hub | 1 | |
| 3/16″ Bore | 5622-541-009 | ||
| 1/4″ Bore | 5622-541-008 | ||
| 1A-2 | Armature | 110-0110 | 1 |
| 1B | Antibacklash Armature | 1 | |
| 3/16″ Bore | 5622-111-004 | ||
| 1/4″ Bore | 5622-111-002 | ||
| 5/16″ Bore | 5622-111-003 | ||
| 2 | Mounting Accessory | 5101-101-001 | 1 |
| 3 | Magnet | 1 | |
| 6 Volt | 5373-631-003 | ||
| 24 Volt | 5373-631-005 | ||
| 90 Volt | 5373-631-007 |
