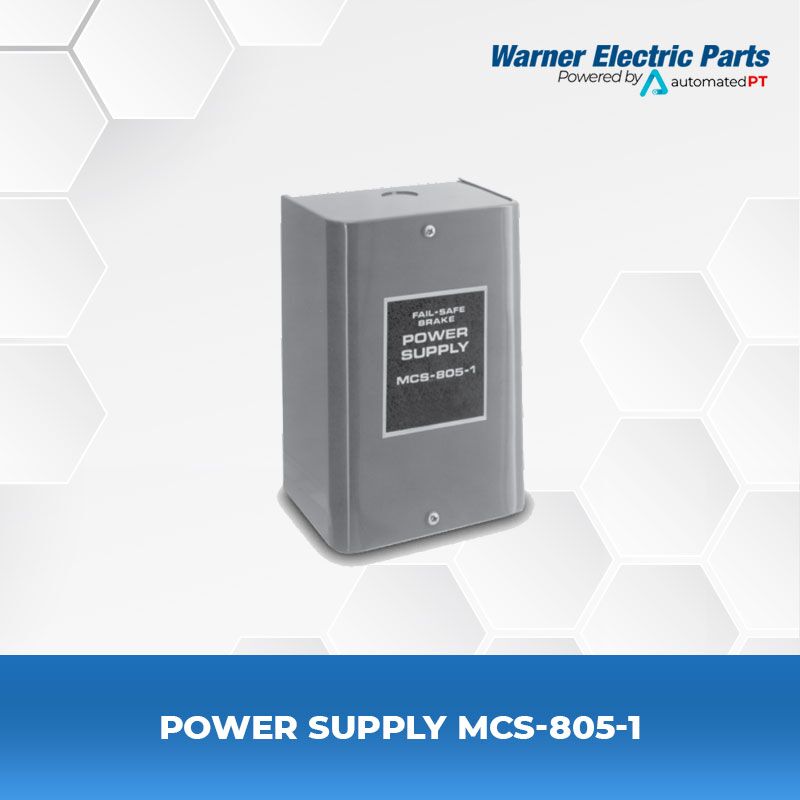

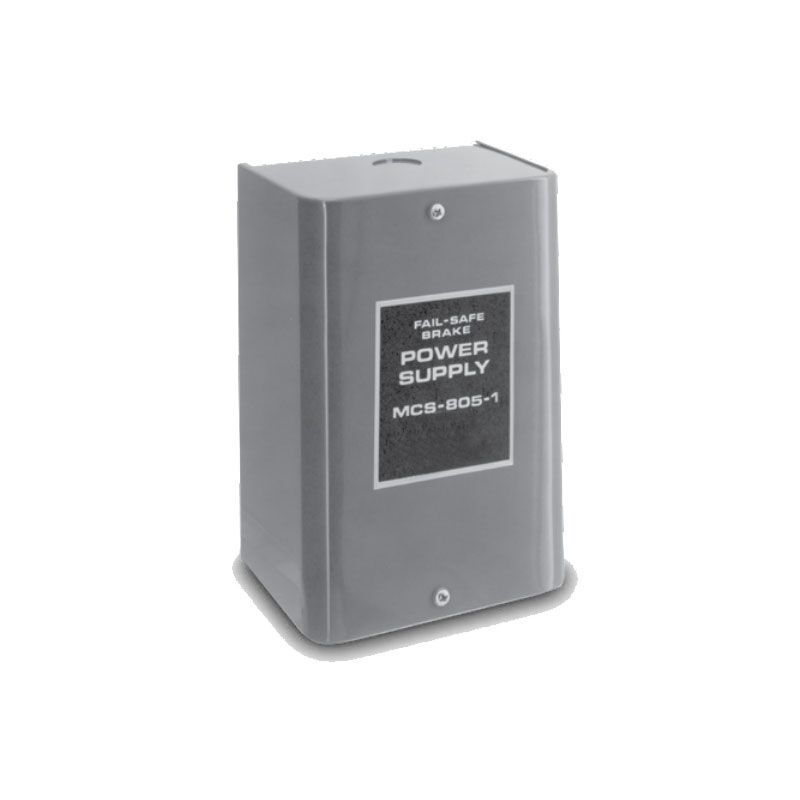

Warner Electric Power Supply MCS-805-1

  • 6090-448-006
  • Power Supply
  • Model Name: MCS-805-1
  • No. of Channels: 1
  • Torque Control Channels: 1
  • A.C. Input Voltages: 120
  • D.C. Output Voltages: 35
  • OverExcitation: No
  • Customer Supplied Switching Options: Relay D.C.

Model No. – MCS-805-1
Input – 115/230 VAC, 50/60 Hz +10%
Output – 0.4 Amp, 35/75 VDC
Part No. – 6090-448-006

Warner Electric Power Supply MCS-805-1

The DC voltage required to release the Warner Electric ER-1225 Brake is supplied by
the MCS-805-1 or MCS-805-2 Power Supply. The correct brake release voltage,
approximately 35-75 volts DC, is set by adjusting the power supply at the time of
brake installation. Temperature compensating circuits provide proper operation over the
entire operating range of 0°F to 150°F. Switching may be provided on either the AC or
DC side of the power supply. The MCS-805-1 may be mounted on its back panel or on
1/2″ conduit. The MCS-805-2 has a torque adjustment capability for soft stop
applications. The MCS-805-2 requires two switching circuits when used for those
applications requiring soft engagement.
