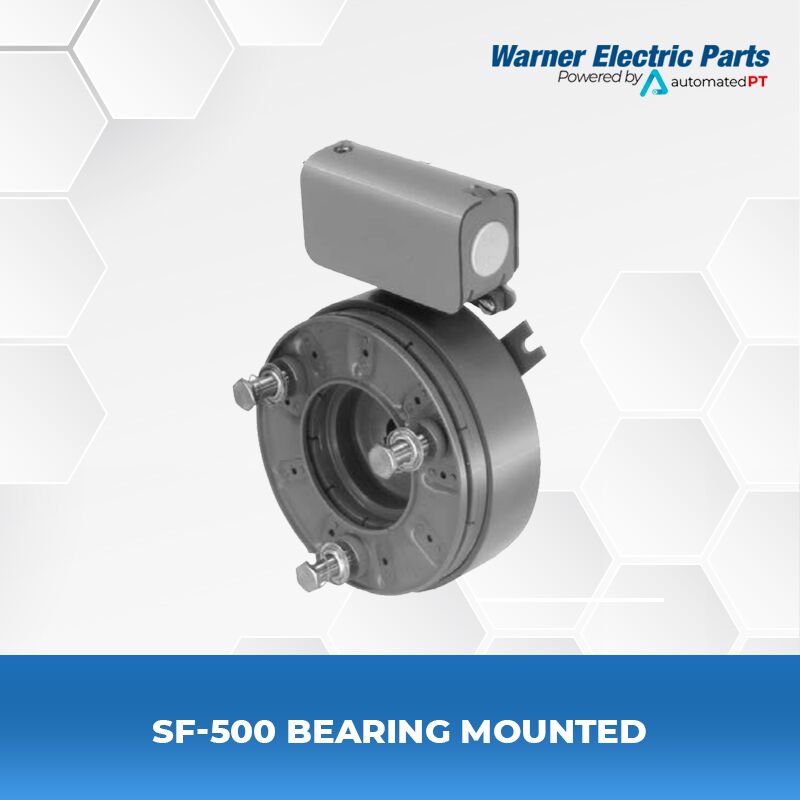

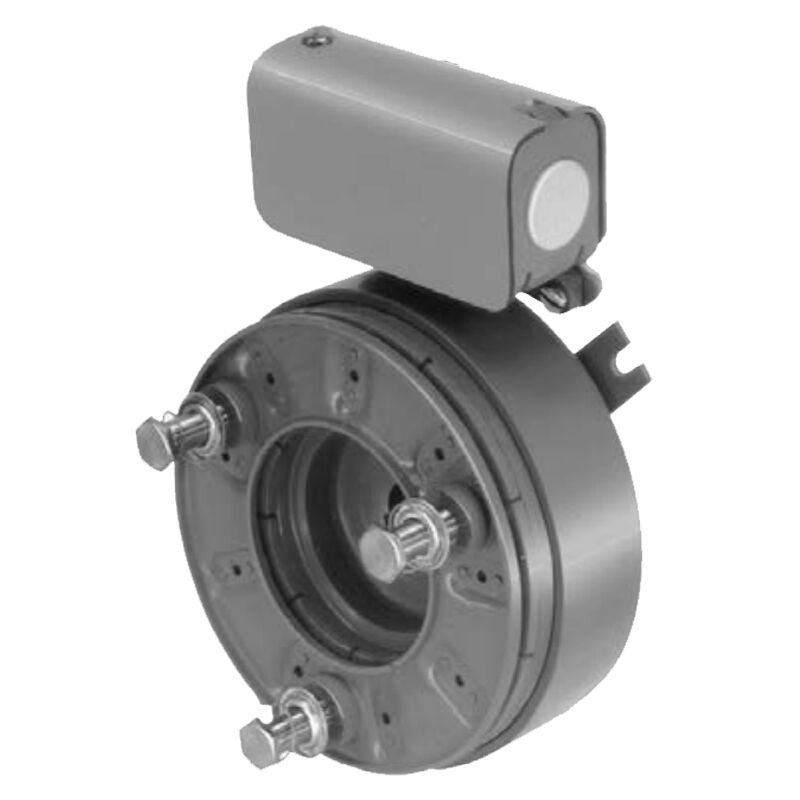

Warner Electric SF-500 Bearing Mounted
- SF Series
- Voltage: 6/24/90 VDC
- Static Torque: 95 lb.ft.
- Max RPM: 3,600 rpm
- Shaft Size: .500 1.625
The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.
SPECIFICATIONS
| Model Name | SF-500 Bearing Mounted |
| Function | Stationary Field Clutch |
| Static Torque | 270 lb.in. |
| Max. RPM | 4,500 rpm |
| Standard Voltage | DC 6, 24, 90 |
| Outside Diameter | 4.25 Inches |
| Overall Length | 3.75 Inches |
| Manufacturer Drawing | I-25715 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SF-500 BM Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SF-500 BM Duty Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Items 1 and 4.
2. Specify Voltage for Item 4.
3. See Controls Section.
Example:
SF-400 Clutch per I-25696 – 90 Volt 3/4” Armature Hub Bore 3/4” Rotor Bore

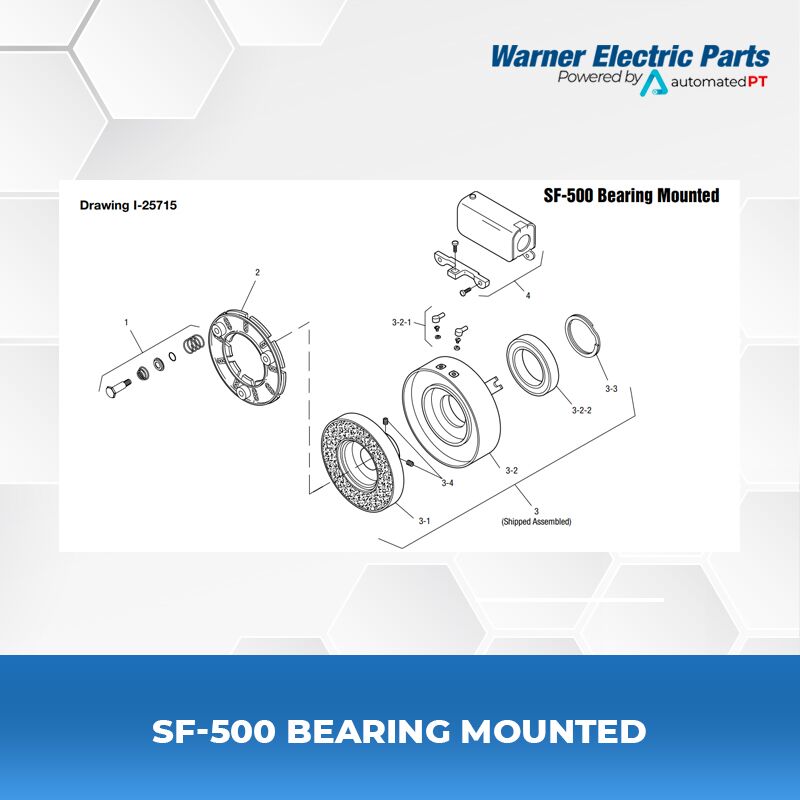

| SF-500 Bearing Mounted Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Autogap Accessory | 5200-101-009 | 3 |
| 2 | Armature | 5300-111-002 | 1 |
| 3 | Field and Rotor Assembly | 1 | |
| 6 Volt – 3/4″ Bore | 5200-452-002 | ||
| 24 Volt – 3/4″ Bore | 5200-452-004 | ||
| 90 Volt – 3/4″ Bore | 5200-452-005 | ||
| 6 Volt – 7/8″ Bore | 5200-452-008 | ||
| 24 Volt – 7/8″ Bore | 5200-452-010 | ||
| 90 Volt – 7/8″ Bore | 5200-452-011 | ||
| 24 Volt – 15/16″ Bore | 5200-452-016 | ||
| 90 Volt – 15/16″ Bore | 5200-452-017 | ||
| 6 Volt – 1″ Bore | 5200-452-020 | ||
| 24 Volt – 1″ Bore | 5200-452-022 | ||
| 90 Volt – 1″ Bore | 5200-452-023 | ||
| 6 Volt – 1-1/8″ Bore | 5200-452-026 | ||
| 24 Volt – 1-1/8″ Bore | 5200-452-028 | ||
| 90 Volt – 1-1/8″ Bore | 5200-452-029 | ||
| 6 Volt – 1-1/4″ Bore | 5200-452-032 | ||
| 24 Volt – 1-1/4″ Bore | 5200-452-034 | ||
| 90 Volt – 1-1/4″ Bore | 5200-452-035 | ||
| 3-1 | Rotor | 1 | |
| 3/4″ Bore | 5200-751-002 | ||
| 7/8″ Bore | 5200-751-003 | ||
| 15/16″ Bore | 5200-741-004 | ||
| Item | Description | Part Number | Qty. |
| 1″ Bore | 5200-751-005 | ||
| 1-1/8″ Bore | 5200-751-006 | ||
| 1-1/4″ Bore | 5200-751-007 | ||
| 3-2 | Field & Bearing Assembly | 1 | |
| 6 Volt | 5200-451-024 | ||
| 24 Volt | 5200-451-026 | ||
| 90 Volt | 5200-451-027 | ||
| 3-2-1 | Terminal Accessory | 5311-101-001 | 1 |
| 3-2-2 | Ball Bearing | 166-0110 | 1 |
| 3-3 | Retainer Ring | 748-0002 | 1 |
| 3-4 | Setscrew | 797-0069 | 2 |
| 4 | Conduit Box | 5200-101-010 | 1 |
