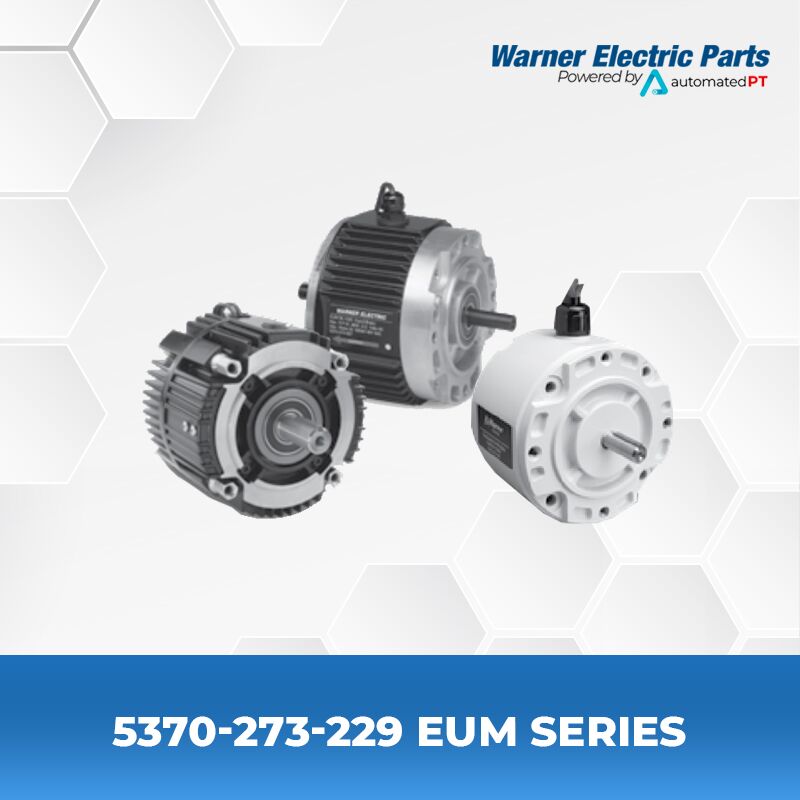

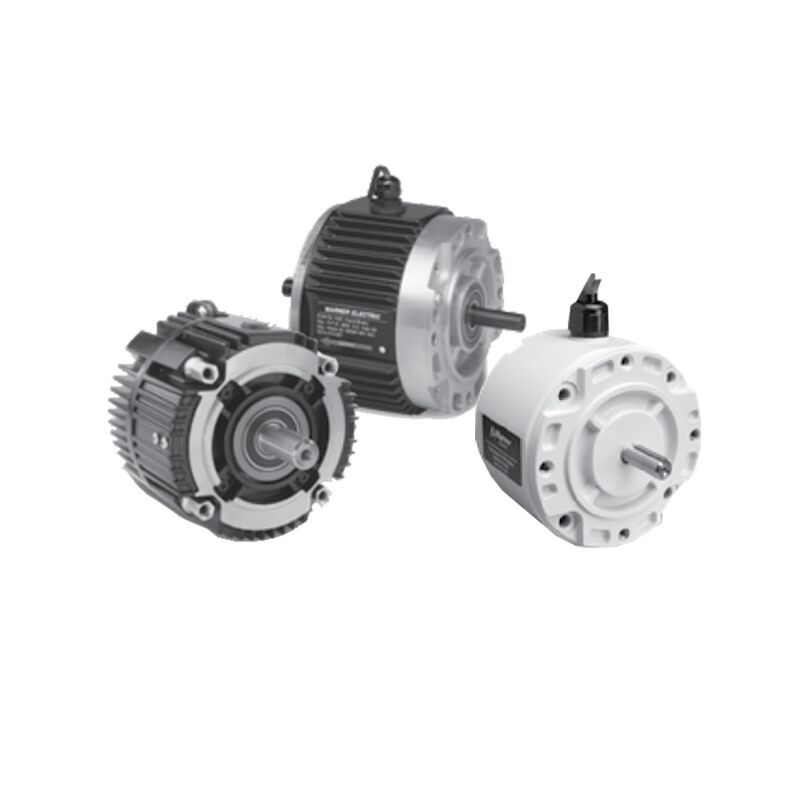

Warner Electric 5370-273-229 EUM Series
$2,597.73
- 5370-273-229
- EUM Series
- Model Size: EUM-180
- Voltage: 90 VDC
- Static Torque: 30 lb. ft.
- Max RPM: 3600
- NEMA Frame Size: 182C/143TC 184C/145TC
SPECIFICATIONS
| Gen 2 No | 5370-273-229 (UM-180-2030) |
| Included in Kit | 5370-31 |
| Cover Kit No | 5370-101-076 |
| Original Part No | 5370-273-069 |
| Series | UM UniModule (Standard/Open) |
| Function | Input Clutch/Brake Base Unit |
| Voltage | 90 VDC |
| Static Torque | 30 lb-ft |
| Maximum Speed | 3600 RPM |
| Construction | Vented Housing (Non-Enclosed) |
| Mounting Type | Base Mounted |

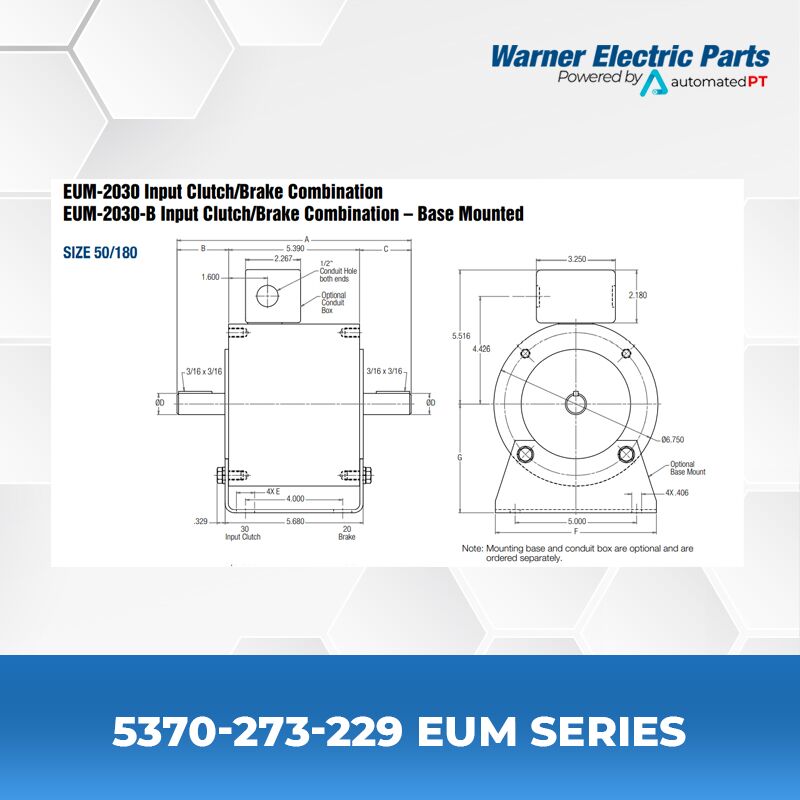

| Dimensions | Height: 9.632 in Width: 2.121 in Shaft Diameter: 0.875 in Key: 3/16 x 3/16 in |
| Coil Design | Sealed & Encapsulated (Pre-burnished) |
| Auto Wear Compensation | Autogapâ„¢ Self-Adjusting Technology |
| Component Parts | |
|---|---|
| Description | Part No |
| Armature Assembly (Qty 2) | 5370-111-013 |
| Armature Hub | 540-1642 |
| Key | 590-0084 |
| Retaining Ring (Hub) | 748-0676 |
| Ball Bearing (Input) | 166-0143 |
| Brake Magnet – 90 Volt | 5370-631-003 |
| Set Screws (Magnet) | 797-1386 |
| Clutch Field / Endbell Assembly – 90 Volt | 5370-451-085 |
| Rotor | 5370-751-034 |
| Set Screws (Rotor) | 797-1249 |
| Center Housing | 535-0176 |
| Shaft (Input Side) | 798-0085 |
| Shaft (Brake Side) | 798-0086 |
| Key (Shaft) | 590-0029 |
| Retaining Ring (Internal) | 748-0101 |
| Ball Bearing (Output) | 166-0300 |
| Assembly Bolts | 797-1433 |
| Washer | 950-0441 |
| Insulator | 572-0327 |
 | ||
| Catalog | Warner Electric UM & EUM Series UniModule Catalog | |
| Service Parts | UM / EUM Series Service Parts Guide |
PRODUCT DESCRIPTION
The Warner Electric UM Series is a factory-aligned clutch/brake module designed for simplified installation and high-performance torque control. This base unit features a vented housing for optimal airflow during high-cycle applications. Engineered for precision, it is designed for base mounting in motor-to-load configurations.
FEATURES
- Vented housing design for heat dissipation during heavy cycling
- Pre-burnished surfaces ensure full torque immediately out-of-box
- Autogapâ„¢ technology automatically compensates for plate wear
- Twin bearing shaft support maintains concentric accuracy
- Quiet engagement and disengagement with sealed coil design
- Factory-aligned assembly reduces installation time and error
Got a Question? We're Here To Help
- For Manuals, Catalogs & Documentation: See Files Section
- Need More Help? Contact Us
Compatible Accessories
$283.52
- 6004-448-001
- On-Off Control
- No. of Channels: 2
- Torque Control Channels: No
- A.C. Input Voltages: 120
- D.C. Output Voltages: 90
- OverExcitation: No
- Customer Supplied Switching Options: Relay A.C
$790.02
- 6004-448-002
- On-Off Control
- No. of Channels: 2
- Torque Control Channels: No
- A.C. Input Voltages: 220/240
- D.C. Output Voltages: 90
- OverExcitation: No
- Customer Supplied Switching Options: Relay A.C
$162.26
Item Number: 5370-101-002 Description: Base Mount Kit Product Family: Accessories Accessory Size 50/180 Family Industrial Clutches/Brakes All dimensions are nominal, unless otherwise noted.
$85.70
SPECIFICATIONS Part Number 5370-101-042 Description Conduit Box Kit (All Sizes) PRODUCT DESCRIPTION The Warner Electric Conduit Box provides a secure, sealed enclosure for wire connections on all EUM Series clutch/brake modules.
$397.57
Item Number: 5370-101-079 Description: Motor Mount Kit Product Family: Accessories Accessory Size 50/100/180 Family Industrial Clutches/Brakes All dimensions are nominal, unless otherwise noted.
