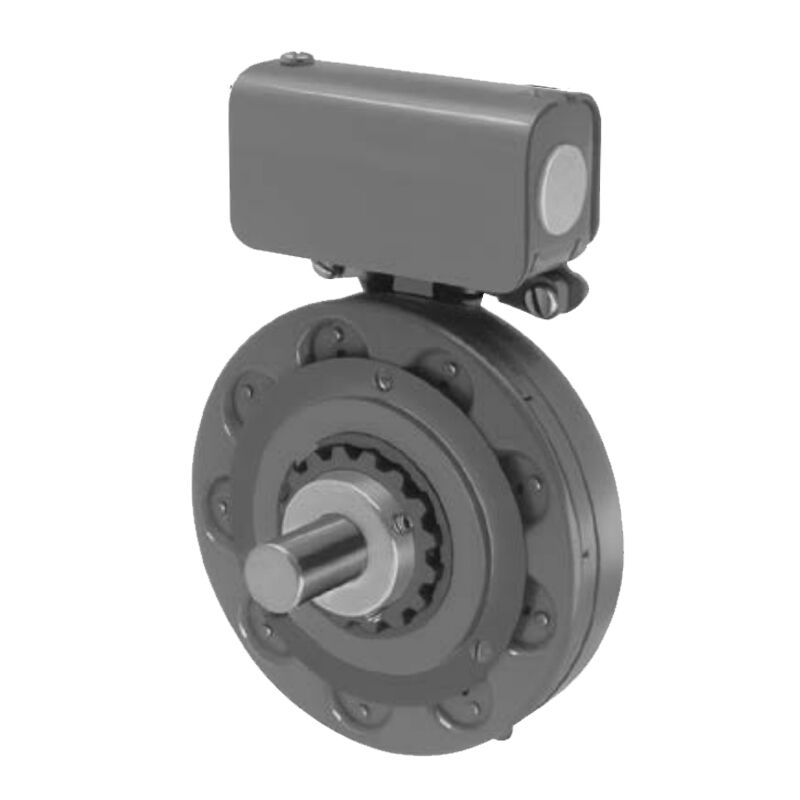

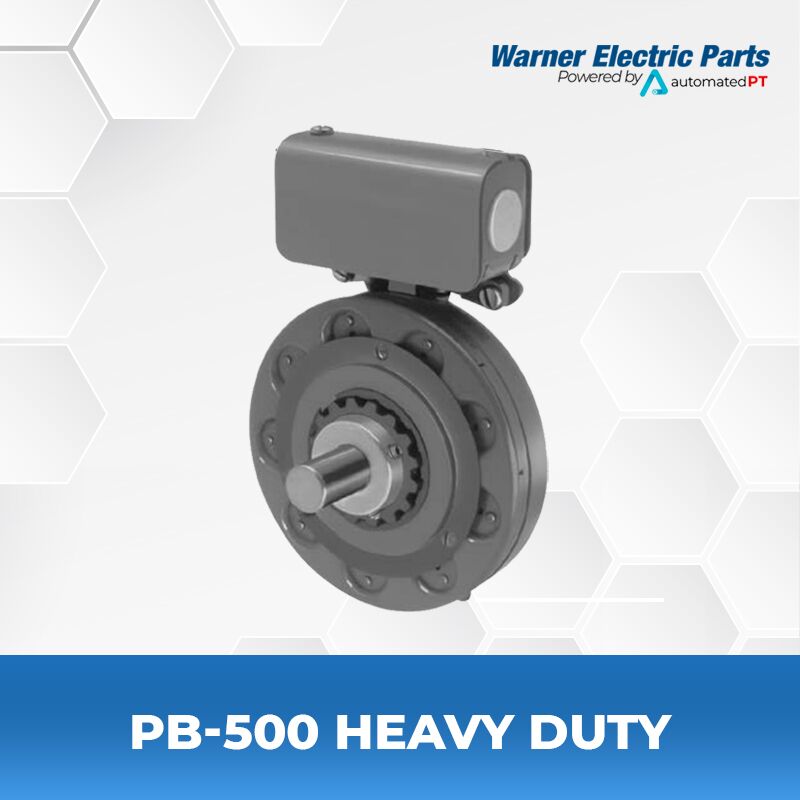

Warner Electric PB-500 Heavy Duty

  • PB Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 40 lb.ft.
  • Max RPM: 5,400 rpm

The PB Series brakes consist of a magnet, armature, and mounting hub in a very simple and extremely compact design.

SPECIFICATIONS

Model Name PB Series PB-500 Heavy Duty
Function Primary Brake
Max. Rated Torque 40 lb.ft
Max. RPM 5,400 rpm
Standard Voltage 6, 24, 90 DC
Outside Diameter 5.25 Inches
Overall Length 3 Inches

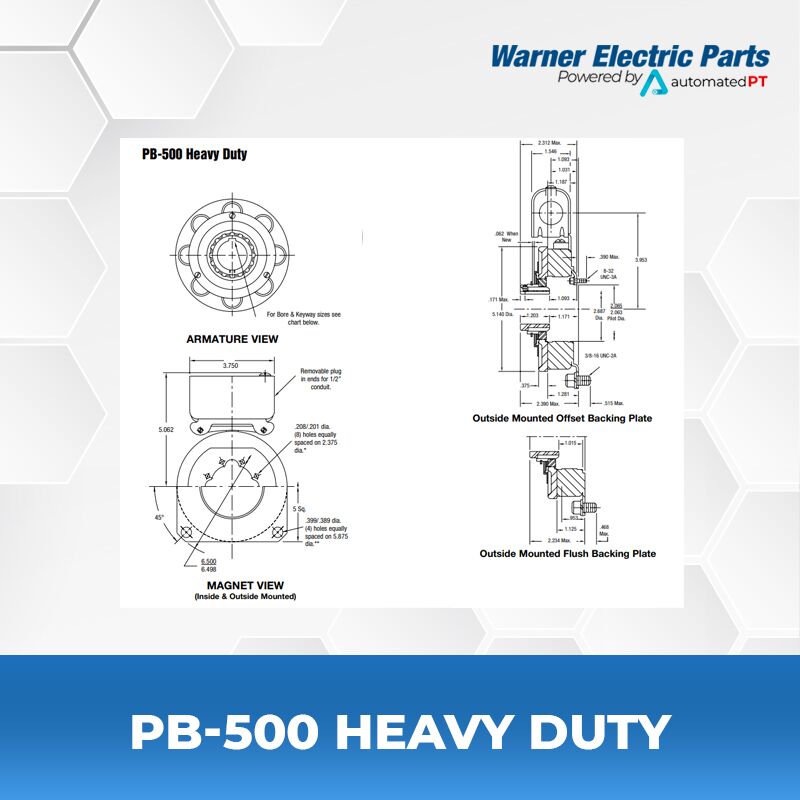

Manufacturer Drawing I-25550

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric PB-500 Users Manual / Installation Instructions
Quick Information Warner Electric PB-500 HD Quick Information

HOW TO ORDER
(Please provide the following with your quote request)

1. Specify Bore Size for Item 1.
2. Specify Voltage for Item 4A, 4B, or 4C.
3. Specify Inside Mounted for Item 4A and Outside Mounted (Offset) for Item 4B or Outside Mounted (Flush) for Item 4C.

Warner Electric PB 500 HD Quick Info

4. See Controls Section.

Warner MB Series Controls

Please provide the following along with your quote request
1. Specify Bore Size for Item 1.
2. Specify Voltage for Item 4A, 4B, or 4C.
3. Specify Inside Mounted for Item 4A and Outside Mounted (Offset) for Item 4B or Outside Mounted (Flush) for Item 4C.

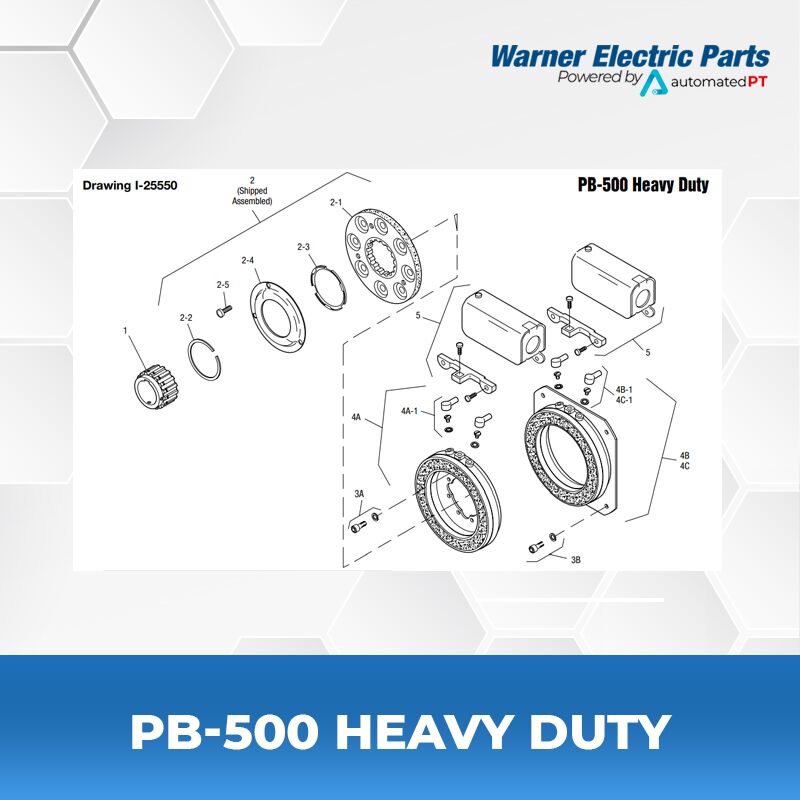

PB-500 Heavy Duty Parts List
Item Description Part Number Qty.
1 Armature Hub 1
3/4″ Bore 5200-541-002
7/8″ Bore 5200-541-003
15/16″ Bore 5200-541-004
1″ Bore 5200-541-005
1-1/8″ Bore 5200-541-006
1-1/4″ Bore 5200-541-007
2 Armature Assembly 5230-111-002 1
2-1 Armature 1
Segmented 5230-111-001
Solid 110-0076
2-2 Retainer Ring 748-0355 1
2-3 Autogap Spring 808-0412 1
2-4 Retainer Plate 748-0364 1
2-5 Screw 797-0028 3
3A Mounting Accessory – I.M. 5102-101-001 2
3B Mounting Accessory – O.M. 5300-101-008 1
4A Magnet – I.M. 1
6 Volt 5300-631-002
24 Volt 5300-631-003
90 Volt 5300-631-005
4A-1 Terminal Accessory 5311-101-001 1
4B Magnet – O.M. – Offset 1
90 Volt 5300-631-014
4B-1 Terminal Accessory 5311-101-001 1
4C Magnet – O.M. – Flush 1
6 Volt 5300-631-009
24 Volt 5300-631-010
90 Volt 5300-631-011
4C-1 Terminal Accessory 5311-101-001 1
5 Conduit Box 5200-101-010 1
