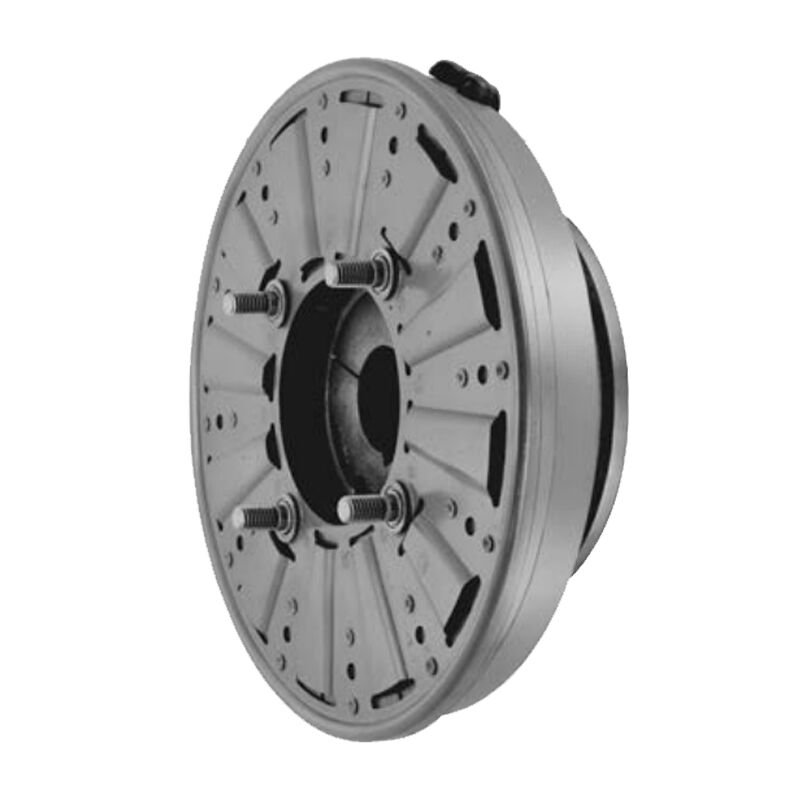

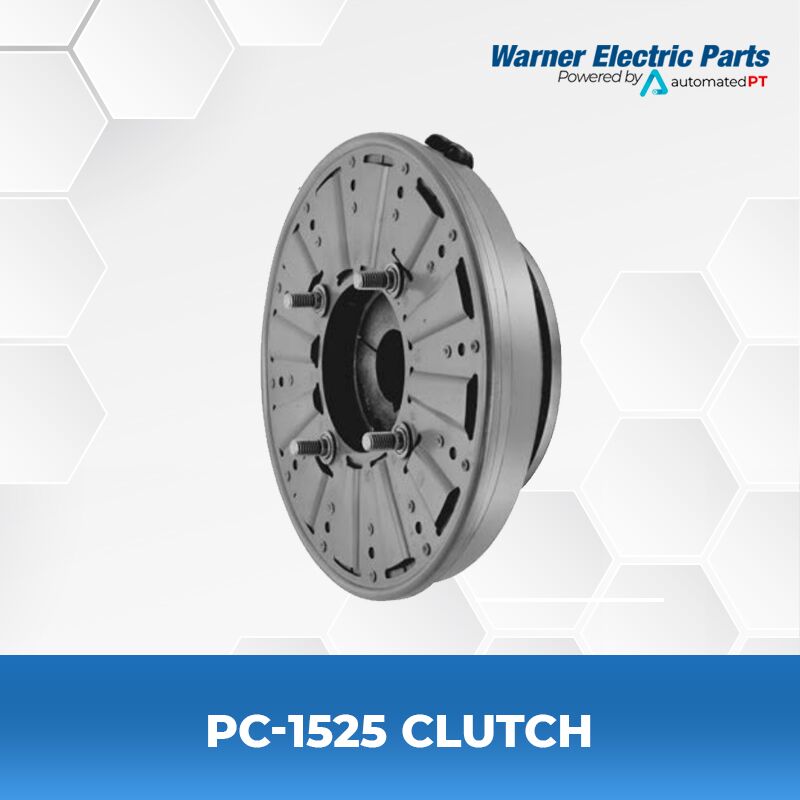

Warner Electric PC-1525 Clutch
- PC Series
- Voltage: 6/24/90 VDC
- Static Torque: 700 lb.ft.
- Max RPM: 2,000 rpm
- Shaft Size: .937 3.000
Current is carried through brushes and the collector ring to the rotating magnet. The PC design is less expensive than the SF design.
SPECIFICATIONS
| Model Name | PC Series PC-1525 Clutch |
| Function | Primary Clutch |
| Shaft Size | .937 – 3.000 |
| Max. Rated Torque | 700 lb. ft |
| Max. RPM | 2,000 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 16.25 Inches |
| Overall Length | 4.75 Inches |

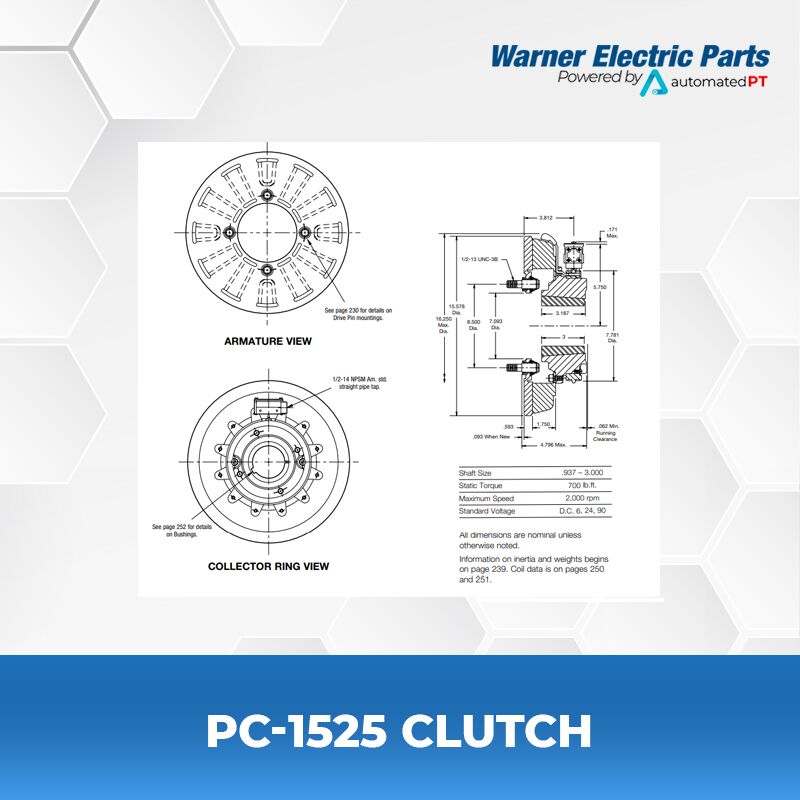

| Manufacturer Drawing | I-25628 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 |
||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PC-1525 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PC-1525 Quick Information |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Voltage for Item 4.
2. Specify Bore Size for Item 5.
3. Specify left hand or right hand hub for Item 6. (Bushing enters from magnet side for L.H. hub and from hub side for R.H.)

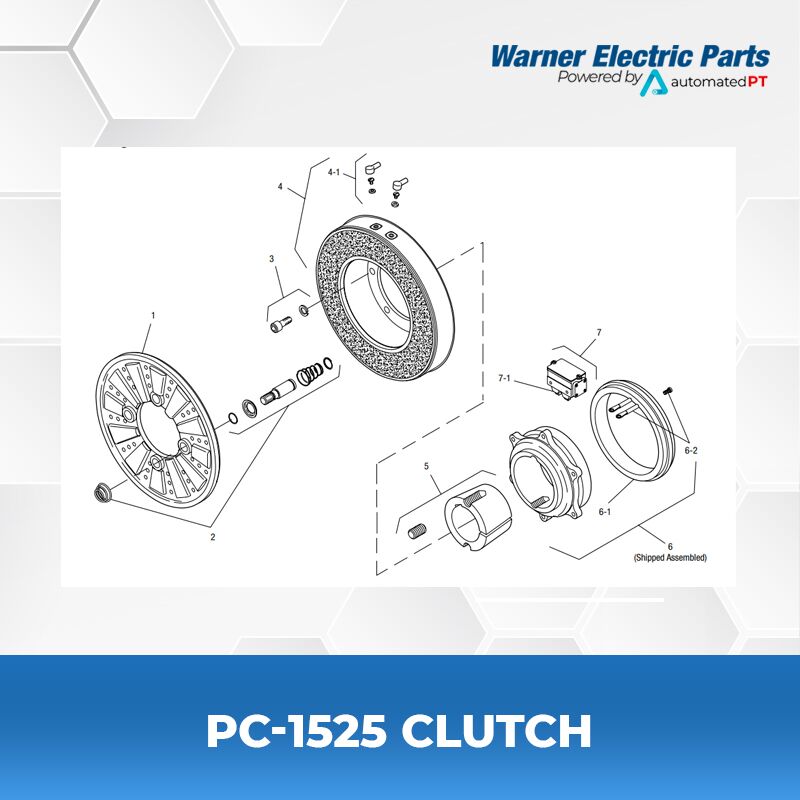

| PC-1525 Normal Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Armature | 5304-111-004 | 1 |
| 2 | Autogap Accessory | 5201-101-008 | 4 |
| 3 | Mounting Accessory | 5321-101-001 | 2 |
| 4 | Magnet | 1 | |
| 6 Volt | 5304-631-009 | ||
| 24 Volt | 5304-631-011 | ||
| 90 Volt | 5304-631-010 | ||
| 90 Volt LK Facing | 5304-631-002 | ||
| 4-1 | Terminal Accessory | 5311-101-001 | 1 |
| 5 | Bushing* | 1 | |
| 15/16″ to 3″ Bore | 180-0262 to 180-0295 | ||
| 6 | Magnet Hub | 1 | |
| Left Hand (shown) | 5304-541-001 | ||
| Right Hand | 5304-541-002 | ||
| 6-1 | Collector Ring | 5301-749-001 | 1 |
| 6-2 | Collector Ring Accessory | 5304-101-004 | 1 |
| 7 | Brushholder | 5300-178-001 | 1 |
| 7-1 | Brush | 176-0001 | 4 |
Manuals and Specifications
 |
||
| Catalog | Warner Electric PC Series Clutch Catalog | |
