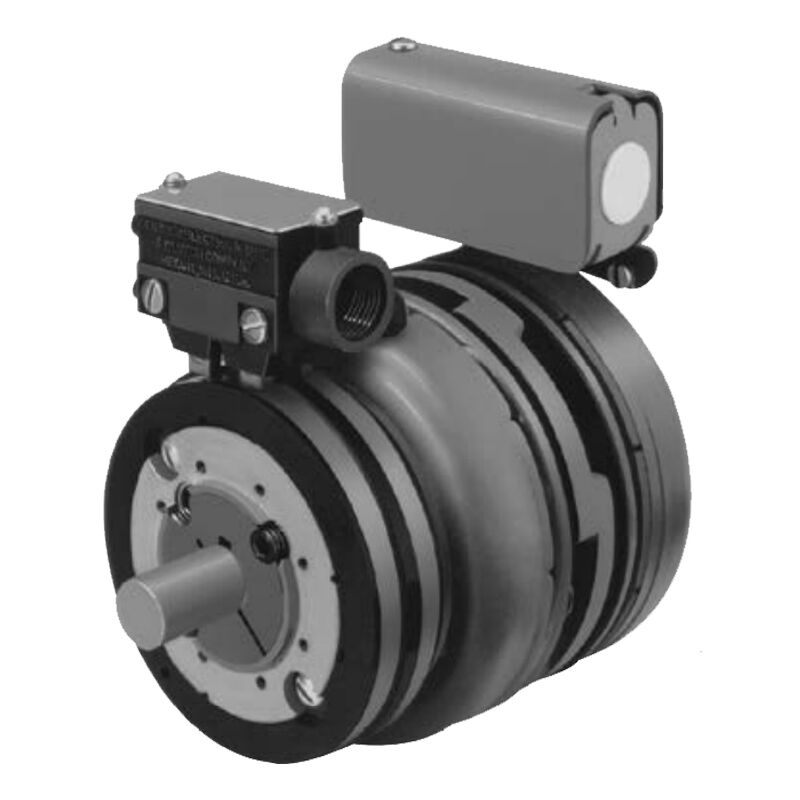

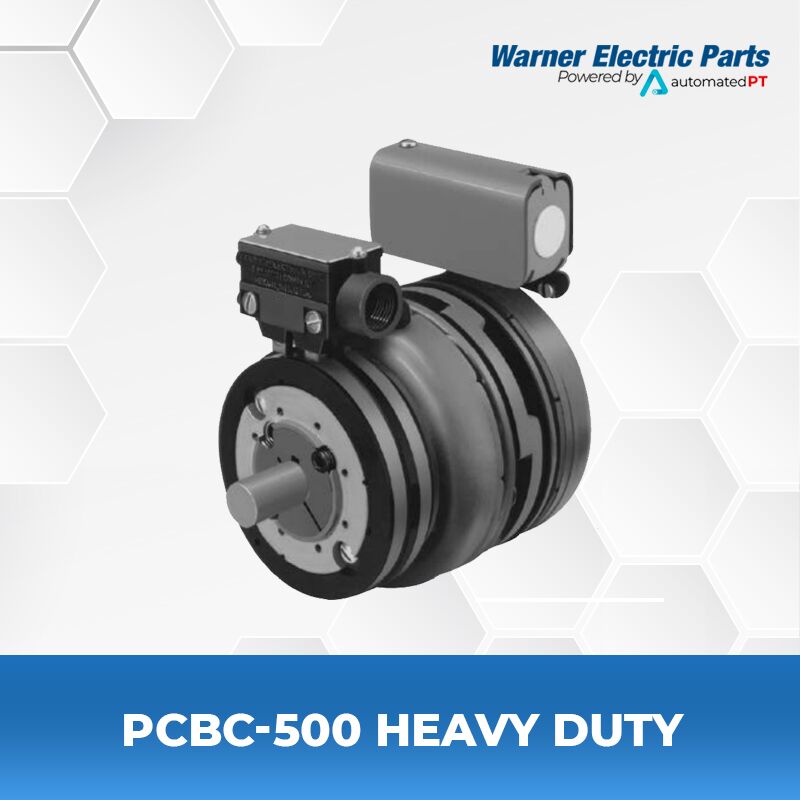

Warner Electric PCBC-500 Heavy Duty
- PCBC Series
- Voltage: 6/24/90 VDC
- Static Torque: 40 lb. ft
- Max RPM: 5,400 rpm
- Shaft Size: .500 – 1.250
- Magnet Shaft Size: .750 – 1.250
The PCBC clutch/brake coupling series combines a PCC clutch coupling with a PB brake.
SPECIFICATIONS
| Model Name | PCBC-500 Heavy Duty |
| Function | Primary Clutch Brake |
| Shaft Size | .500 – 1.250 |
| Max. Rated Torque | 40 lb. ft. |
| Max. RPM | 5,400 rpm |
| Standard Voltage | 6, 24, 90 DC |
| Outside Diameter | 6 Inches |
| Overall Length | 6 Inches |

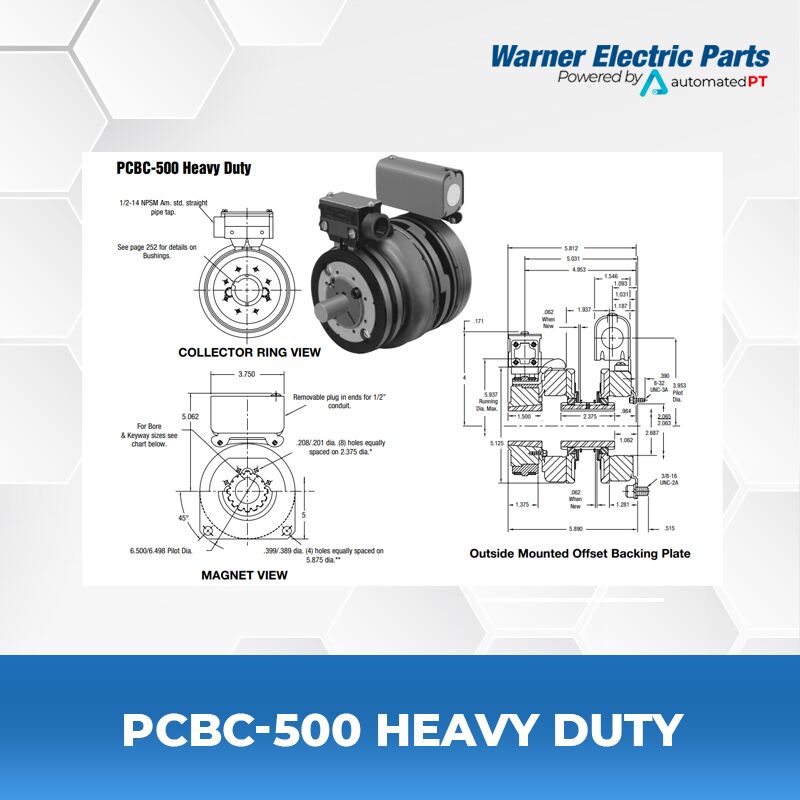

| Manufacturer Drawing | I-25553 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 |
||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric PCBC-500 Users Manual / Installation Instructions | |
| Quick Information | Warner Electric PCBC-500 Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Items 3 and 7.
2. Specify Voltage for Item 4 and Item 9A, 9B or 9C.
3. Specify Inside Mounted for Item 9A and Outside Mounted (Offset) for Item 9B or Outside Mounted (Flush) for Item 9C.
4. Specify Inside Mount for Item 8A or Outside Mount for Item 8B.
5. See Controls Section.
Example:
PCBC-500 Clutch Brake Coupling per I-25553 – 90 Volt, Outside Mounted Flush, 1” Bore

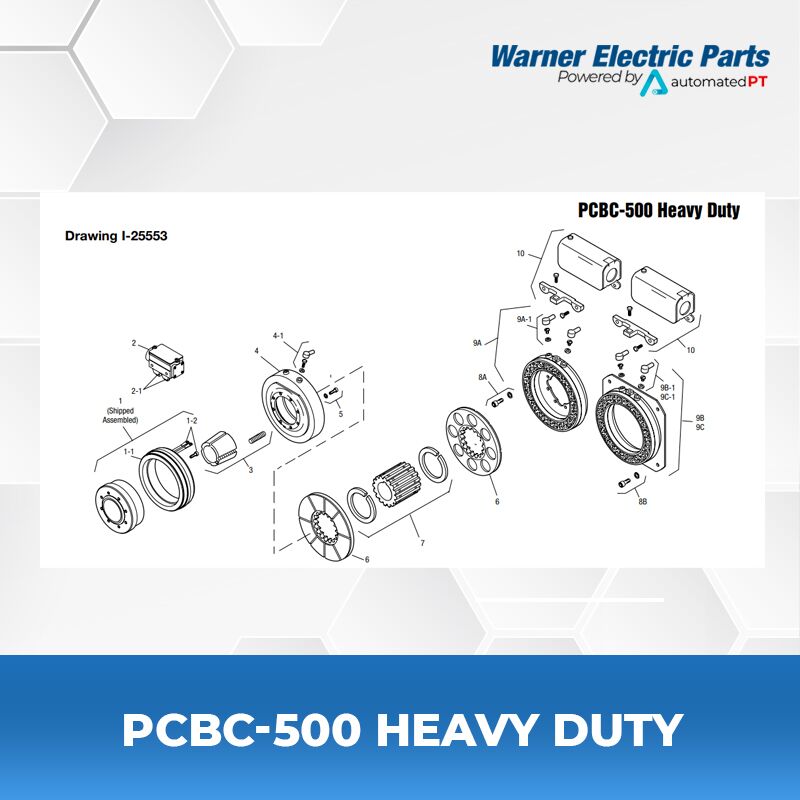

| PCBC-500 Heavy Duty Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Magnet Hub | 5300-541-001 | 1 |
| 1-1 | Collector Ring | 5300-749-001 | 1 |
| 1-2 | Collector Ring Mounting Accessory | 5300-101-002 | 1 |
| 2 | Brushholder | 5300-178-001 | 1 |
| 2-1 | Brush | 176-0001 | 4 |
| 3 | Bushing* | 1 | |
| 1/2″ – 1-1/4″ Bore | 180-0116 to 180-0128 | ||
| 4 | Magnet, Clutch | 1 | |
| 6 Volt | 5300-631-002 | ||
| 24 Volt | 5300-631-003 | ||
| 90 Volt | 5300-631-005 | ||
| 4-1 | Terminal Accessory | 5311-101-001 | 1 |
| 5 | Mounting Accessory | 5102-101-001 | 2 |
| 6 | Armature | 5230-111-002 | 2 |
| 7 | Armature Hub | 1 | |
| Bore Keyway | |||
| 3/4″ 3/16 x 3/32 | 5300-541-006 | ||
| 7/8″ 3/16 x 3/32 | 5300-541-007 | ||
| 15/16″ 1/4 x 1/8 | 5300-541-008 | ||
| 1″ 1/4 x 1/8 | 5300-541-009 | ||
| 1-1/8″ 1/4 x 1/8 | 5300-541-010 | ||
| 1-1/4″ 1/4 x 1/8 | 5300-541-011 | ||
| 8A | Mounting Accessory – I.M. | 5102-101-001 | 2 |
| 8B | Mounting Accessory – O.M. | 5300-101-008 | 1 |
| 9A | Magnet – I.M. | 1 | |
| 6 Volt | 5300-631-002 | ||
| 24 Volt | 5300-631-003 | ||
| 90 Volt | 5300-631-005 | ||
| 9A-1 | Terminal Accessory | 5311-101-001 | 1 |
| 9B | Magnet – O.M. – Offset | 1 | |
| 90 Volt | 5300-631-014 | ||
| 9B-1 | Terminal Accessory | 5311-101-001 | 1 |
| 9C | Magnet – O.M. – Flush | 1 | |
| 6 Volt | 5300-631-009 | ||
| 24 Volt | 5300-631-010 | ||
| 90 Volt | 5300-631-011 | ||
| 9C-1 | Terminal Accessory | 5311-101-001 | 1 |
| 10 | Conduit Box | 5200-101-010 | 1 |
