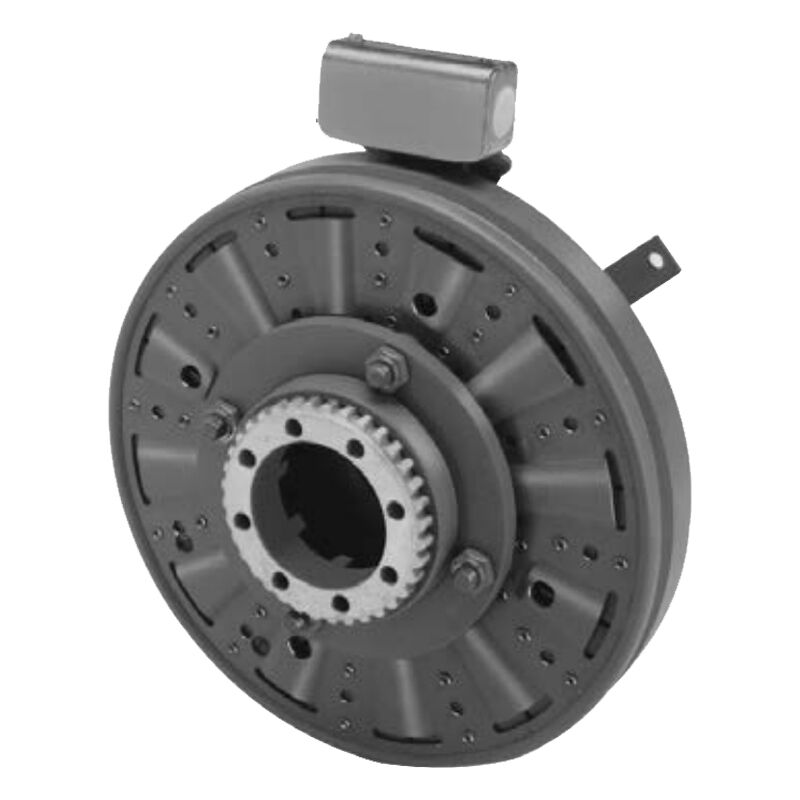

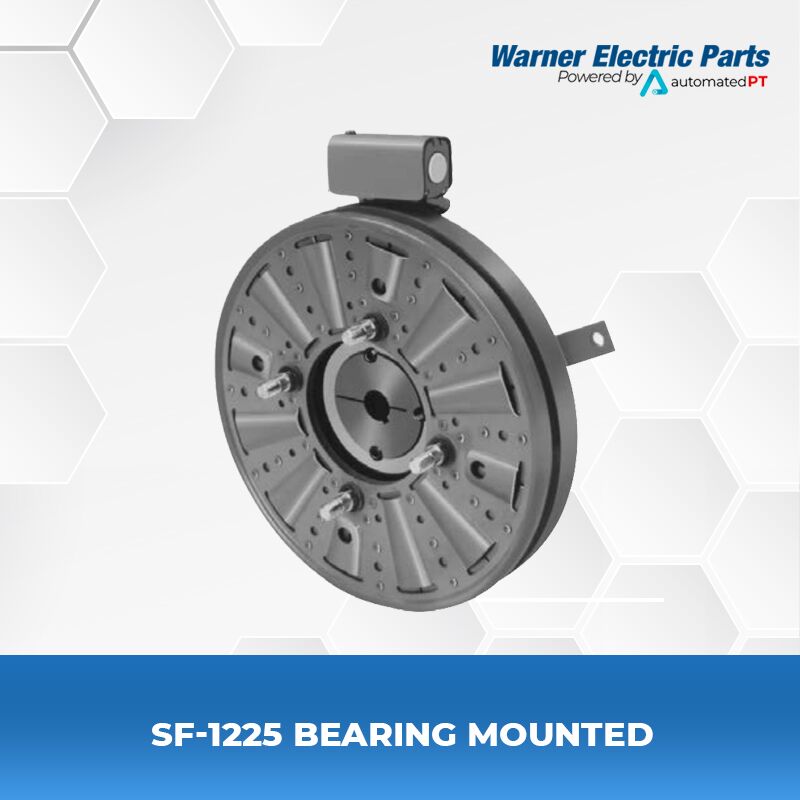

Warner Electric SF-1225 Bearing Mounted
- SF Series
- Voltage: 6/24/90 VDC
- Static Torque: 465lb.ft.
- Max RPM: 2,200 rpm
- Shaft Size: .500 2.500
- Armature Bore: –
The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.
SPECIFICATIONS
| Model Name | SF-1225 Bearing Mounted |
| Function | Stationary Field Clutch |
| Shaft Size | .500 – 2.000 |
| Static Torque | 465 lb. ft. |
| Max. RPM | 2,200 rpm |
| Standard Voltage | DC 6, 24, 90 |
| Outside Diameter | 12.75 Inches |
| Overall Length | 3.50 Inches |

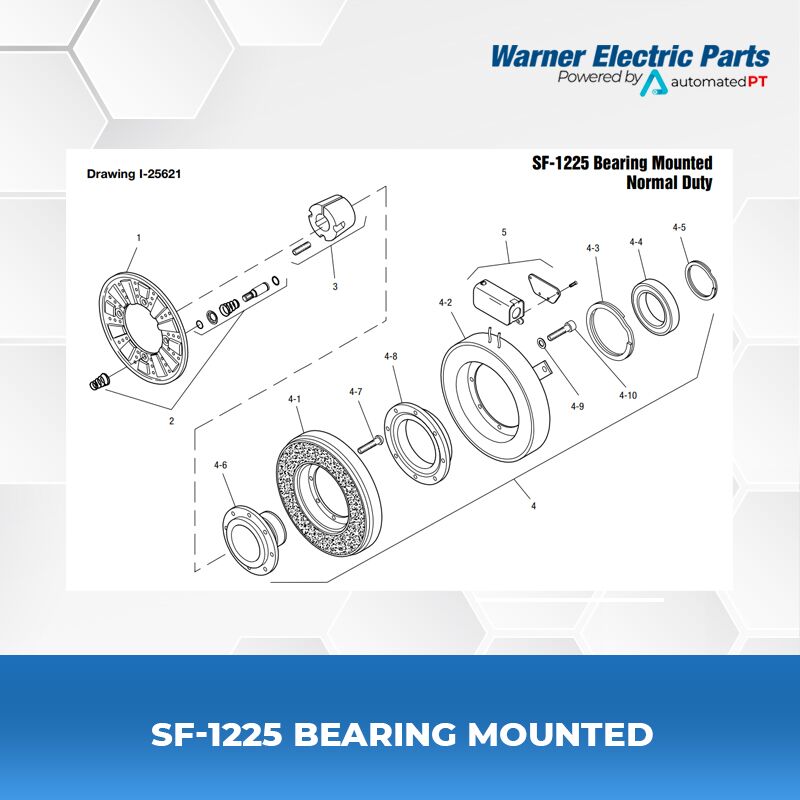

| Manufacturer Drawing | I-25621 |
SERIES DESCRIPTION
Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.
- Easily adaptable to any mounting requirement
- Low initial cost
- Wide range of models and options
CATALOG & MANUALS
 | ||
| Catalog | Warner Electric Basic Design Clutches Brakes Catalog | |
| Users Manual / Installation Instructions | Warner Electric SF-1225 BM Users Manual / Installation Instructions | |
| Quick Information | Warner Electric SF-1225 BM Duty Quick Info |
HOW TO ORDER
(Please provide the following with your quote request)
1. Specify Bore Size for Item 3.
2. Specify Voltage for Item 4.
3. See Controls Section.
Example:
SF-1225 Clutch per I-25621 – 90 Volt, 1” Bore.
| SF-1225 Bearing Mounted Parts List | |||
| Item | Description | Part Number | Qty. |
| 1 | Armature | 5303-111-009 | 1 |
| 2 | Autogap Accessory | 5201-101-008 | 4 |
| 3 | Bushing* | 1 | |
| 1/2″ to 2-1/2″ Bore | 180-0185 to 180-0217 | ||
| 4 | Field and Rotor Assembly | 1 | |
| 6 Volt | 5203-452-009 | ||
| 24 Volt | 5203-452-011 | ||
| 90 Volt | 5203-452-012 | ||
| 4-1 | Rotor | 1 | |
| Standard Friction Material | 5203-751-001 | ||
| Optional LK Facing | 5203-751-004 | ||
| 4-2 | Field | 1 | |
| 6 Volt | 5203-451-034 | ||
| 24 Volt | 5203-451-036 | ||
| 90 Volt | 5203-451-037 | ||
| 4-3 | Retainer Ring | 748-0119 | 1 |
| 4-4 | Ball Bearing | 166-1047 | 1 |
| 4-5 | Retainer Ring | 748-0011 | 1 |
| 4-6 | Rotor Hub | 540-1304 | 1 |
| 4-7 | Buttonhead Capscrew | 797-1261 | 8 |
| 4-8 | Ring Adapter | 748-0591 | 1 |
| 4-9 | Lockwasher | 950-0359 | 6 |
| 4-10 | Sockethead Capscrew | 797-0424 | 6 |
| 5 | Conduit Box | 5200-101-012 | 1 |
