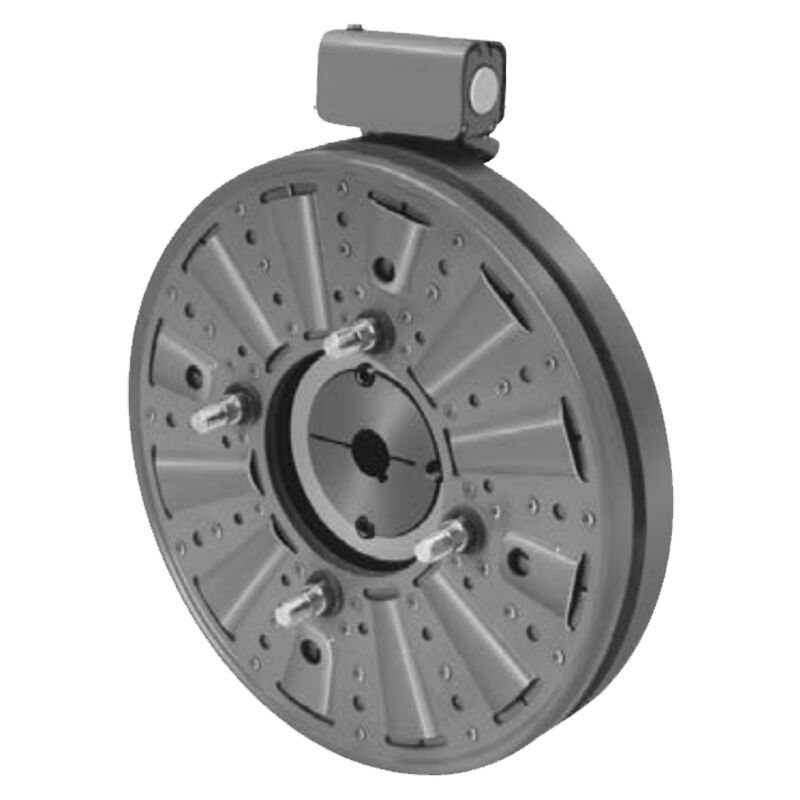

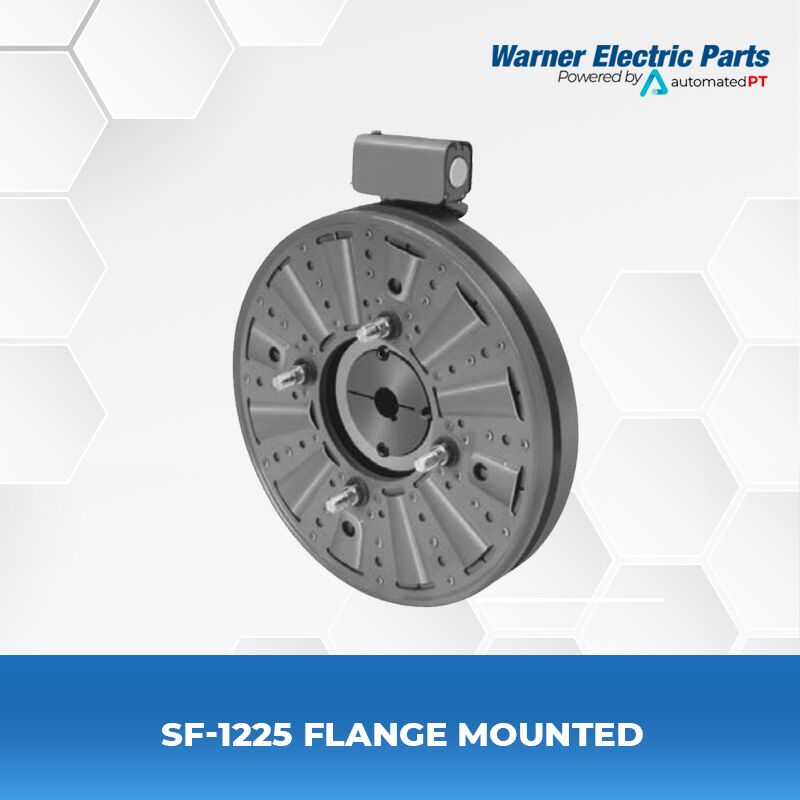

Warner Electric SF-1225 Flange Mounted

  • SF Series
  • Model Size: sf-1225
  • Voltage: 6/24/90 VDC
  • Static Torque: 465lb.ft.
  • Max RPM: 3,000 rpm
  • Shaft Size: .500 – 2.500

The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.

SPECIFICATIONS

Model Name SF-1225 Flange Mounted
Function Stationary Field Clutch
Shaft Size .500 – 2.000
Static Torque 465 lb. ft.
Max. RPM 3,000 rpm
Standard Voltage DC 6, 24, 90
Outside Diameter 12.75 Inches
Overall Length 3.50 Inches
Manufacturer Drawing I-25600

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SF-1225 FM Users Manual / Installation Instructions
Quick Information Warner Electric SF-1225 FM – Duty Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Item 5.
2. Specify Voltage for Item 7A or 7B.
3. Specify Inside Mounted for Items 7A and 8A or Outside Mounted for Items 7B and 8B.
4. See Controls Section.

Example:
SF-1225 Clutch per I-25600 – 90 Volt, 1-1/2” Bore, Inside Mounted.

Warner Electric SF Series 1225

Warner MB Series Controls



SF-1225 Flange Mounted Parts List
Item Description Part Number Qty.
1 Armature 5303-111-009 1
2 Autgap Accessory 5201-101-008 4
3 Mounting Accessory 5321-101-002 2
4 Rotor 1
Standard Friction Material 5203-751-001
Optional LK Facing 5203-751-004
5 Bushing* 1
1/2″ to 2-1/2″ Bore 180-0185 to 180-0217
6 Rotor Hub 540-0318 1
7A Field – Inside Mounted 1
6 Volt 5203-451-002
24 Volt 5203-451-006
90 Volt 5203-451-005
7B Field – Outside Mounted 1
6 Volt 5203-451-010
24 Volt 5203-451-013
90 Volt 5203-451-011
8A Mounting Accessory – I.M. 5321-101-001 1
8B Mounting Accessory – O.M. 5321-101-002 2
9 Conduit Box 5200-101-012 1
