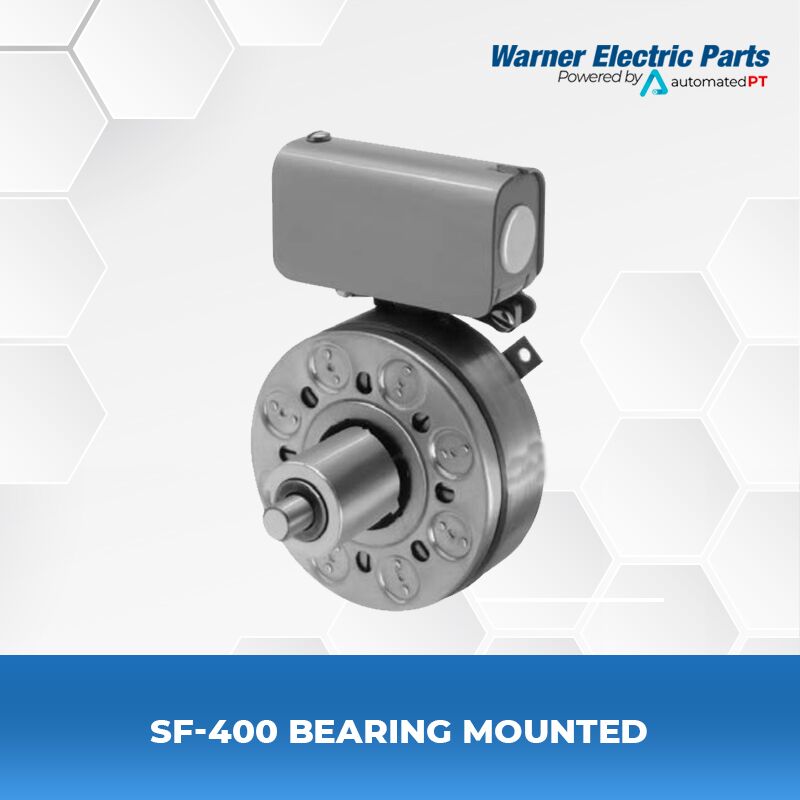

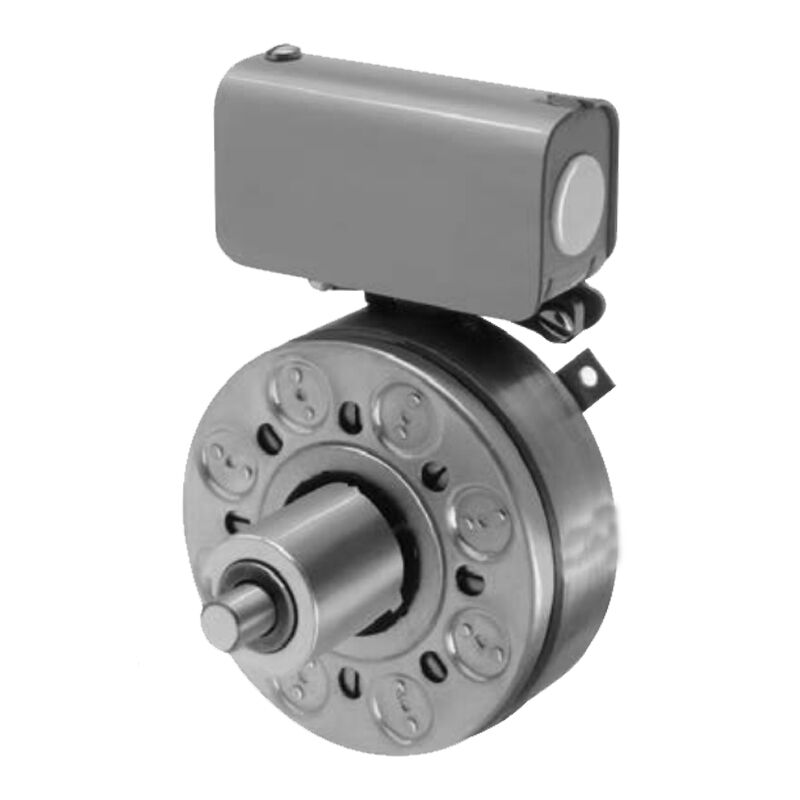

Warner Electric SF-400 Bearing Mounted

  • SF Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 270 lb.in.
  • Max RPM: 4,500 rpm
  • Shaft Size: .5000/.4995- .7500/.7495
  • Armature Bore: .501/.500-1.001/1.000

The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.

SPECIFICATIONS

Model Name SF-400 Bearing Mounted
Function Stationary Field Clutch
Static Torque 270 lb.in.
Max. RPM 4,500 rpm
Standard Voltage DC 6, 24, 90
Outside Diameter 4.25 Inches
Overall Length 3.75 Inches

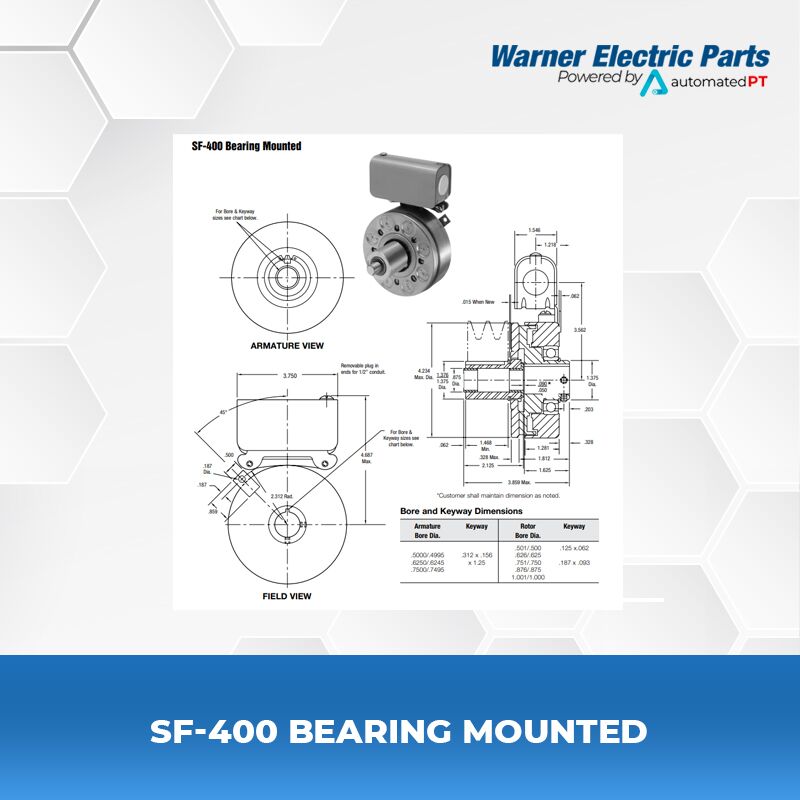

Manufacturer Drawing I-25696

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SF-400 BM Users Manual / Installation Instructions
Quick Information Warner Electric SF-400 BM Duty Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Bore Size for Items 1 and 4.
2. Specify Voltage for Item 4.
3. See Controls Section.

Example:
SF-400 Clutch per I-25696 – 90 Volt 3/4” Armature Hub Bore 3/4” Rotor Bore

Warner Electric SF Series 400 BM





Warner MB Series Controls

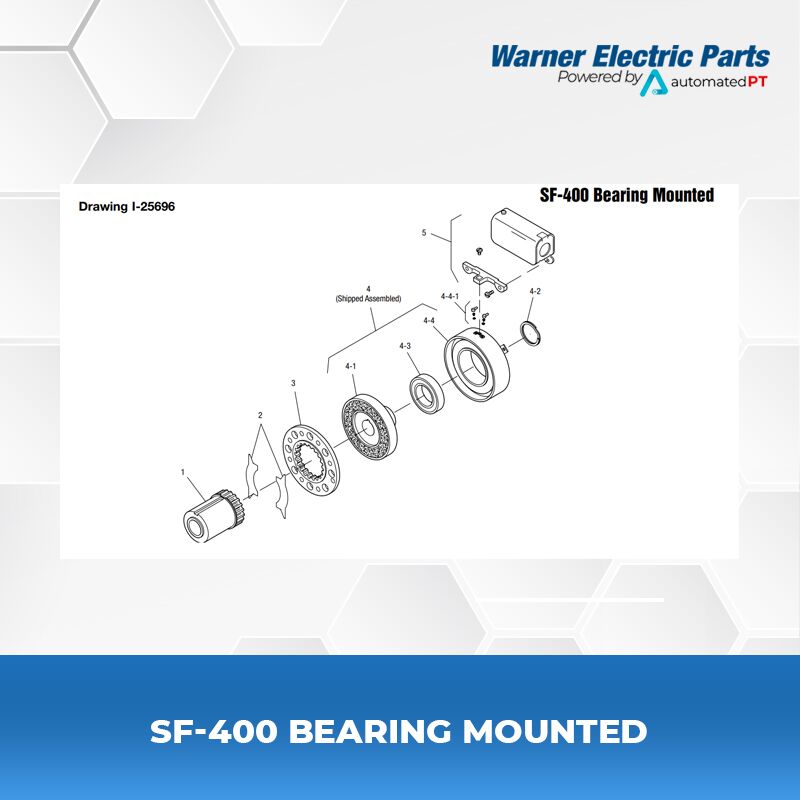

SF-400 Bearing Mounted Parts List
Item Description Part Number Qty.
1 Armature Hub 1
1/2″ Bore 5125-541-002
5/8″ Bore 5125-541-003
3/4″ Bore 5125-541-004
2 Release Spring Optional 5104-101-003 1
3 Armature 5125-111-001 1
4 Field and Rotor Assembly 1
6 Volt – 1/2″ Bore 5104-452-052
24 Volt – 1/2″ Bore 5104-452-053
90 Volt – 1/2″ Bore 5104-452-054
6 Volt – 5/8″ Bore 5104-452-055
24 Volt – 5/8″ Bore 5104-452-056
90 Volt – 5/8″ Bore 5104-452-057
6 Volt – 3/4″ Bore 5104-452-058
24 Volt – 3/4″ Bore 5104-452-059
90 Volt – 3/4″ Bore 5104-452-060
6 Volt – 7/8″ Bore 5104-452-061
24 Volt – 7/8″ Bore 5104-452-062
90 Volt – 7/8″ Bore 5104-452-063
6 Volt – 1″ Bore 5104-452-064
24 Volt – 1″ Bore 5104-452-065
90 Volt – 1″ Bore 5104-452-066
4-1 Rotor 1
1/2″ Bore 5104-751-043
5/8″ Bore 5104-751-044
3/4″ Bore 5104-751-045
7/8″ Bore 5104-741-046
1″ Bore 5104-741-047
4-2 Retainer Ring 748-0018 1
4-3 Ball Bearing 166-0150 1
4-4 Field 1
6 Volt 5104-451-038
24 Volt 5104-451-039
90 Volt 5104-451-040
4-4-1 Terminal Accessory 5103-101-002 1
5 Conduit Box 5200-101-010 1
