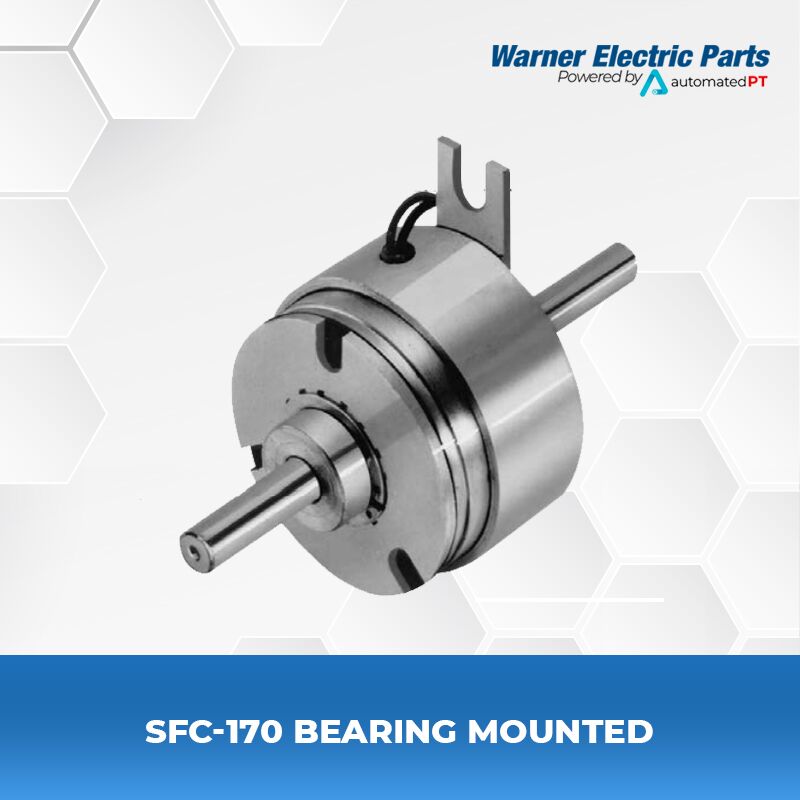

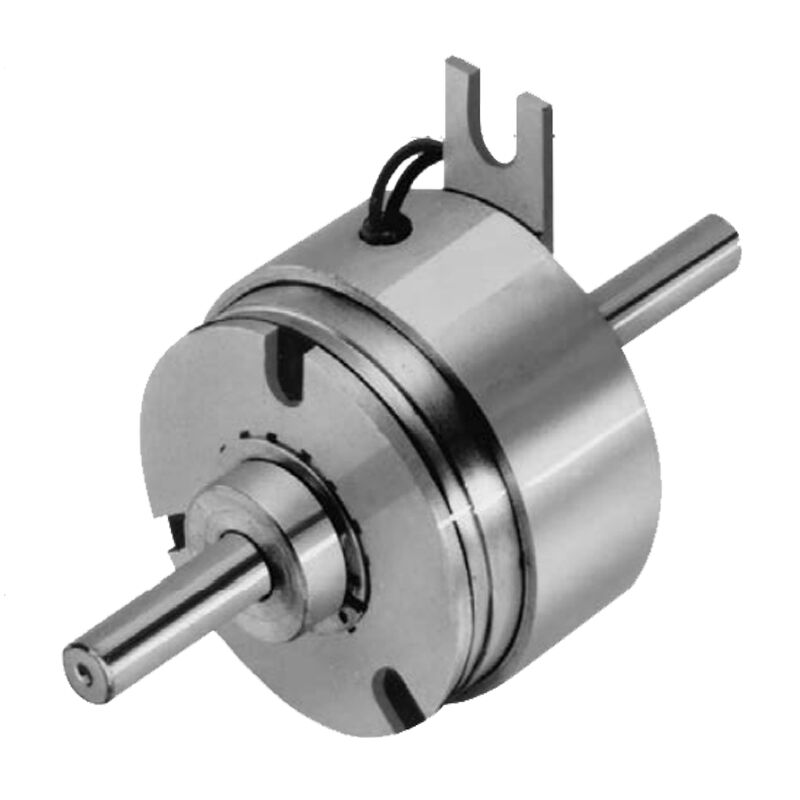

Warner Electric SFC-170 Bearing Mounted

  • SFC Series
  • Model Size: sfc-170
  • Voltage: 6/24/90 VDC
  • Static Torque: 15 lb. in
  • Max RPM: 5,000 rpm
  • Rotor Bore Dia.: .251/.250- .376/.375
  • Armature Bore Dia.: .251/.250- .376/.375

The SFC Series clutch couplings employ the same basic components as the SF design except for a splined hub and adapter which serves as a coupling for in-line shaft applications.

SPECIFICATIONS

Model Name SFC-170 Bearing Mounted
Function Stationary Field Clutch Coupling
Rotor Bore Dia. .251/.250 / .313/.312 / .376/.375
Armature Bore Dia. .251/.250 / .313/.312 / .376/.375
Static Torque 15 lb.in.
Max. RPM 5,000 rpm
Standard Voltage DC 6,24, 90
Outside Diameter 1.75 Inches
Overall Length 1.25 Inches

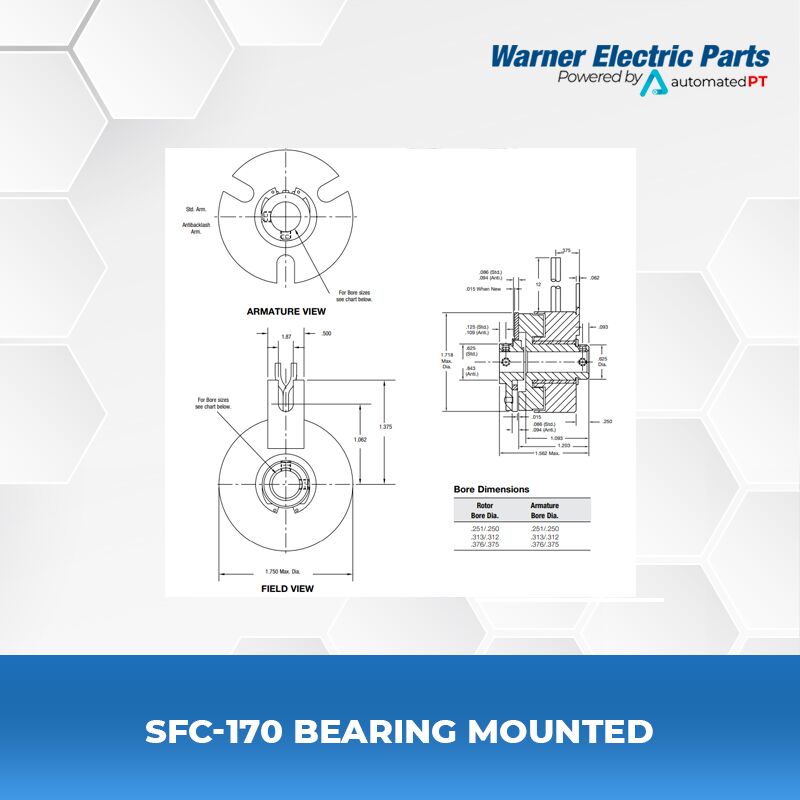

Manufacturer Drawing I-25757

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SFC-170 BM Users Manual / Installation Instructions
Quick Information Warner Electric SFC-170 BM Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B and Item 2.
3. Specify Voltage for Item 3.
4. See Controls Section.

Example:

SFC-170 Clutch per I-25757 – 90 Volt, Antibacklash Armature, 1/4” Armature Hub Bore

Warner Electric SFC Series 170 BM

Warner MB Series Controls



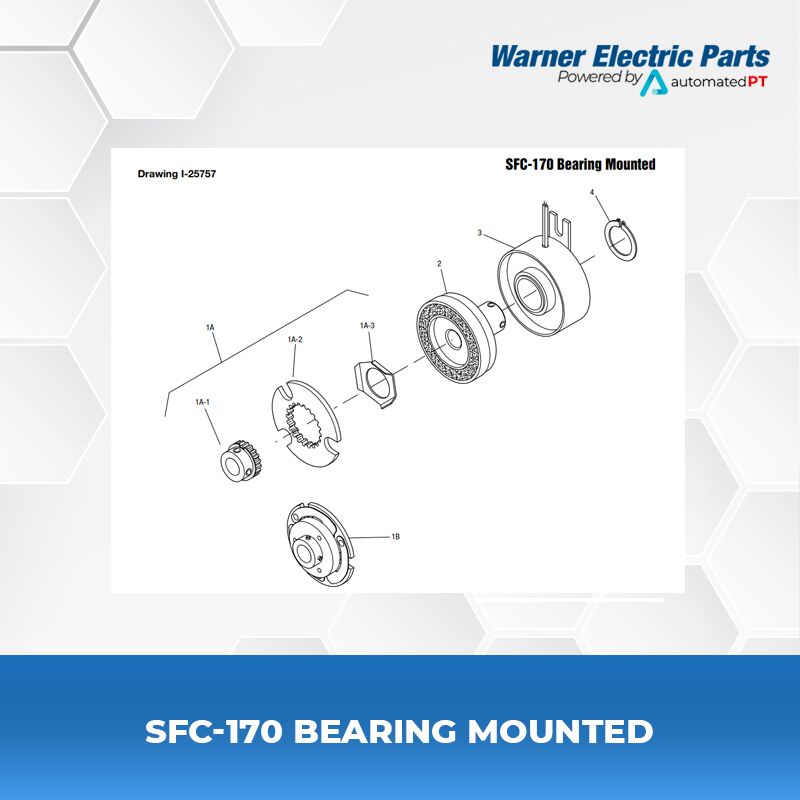

SFC-170 Flange Mounted Parts List
Item Description Part Number Qty.
1A Armature and Hub
1A-1 Armature Hub 1
1/4″ Bore 5102-541-002
5/16″ Bore 5102-541-003
3/8″ Bore 5102-541-004
1A-2 Armature 110-0111 1
1A-3 Release Spring 808-0019 1
1B Antibacklash Armature 1
1/4″ Bore 5623-111-008
5/16″ Bore 5623-111-009
3/8″ Bore 5623-111-010
2 Rotor 1
1/4″ Bore 5603-751-028
5/16″ Bore 5603-751-029
3/8″ Bore 5603-751-030
3 Mounting Accessory 5102-101-001 1
4 Field 1
6 Volt 5603-451-047
24 Volt 5603-451-049
90 Volt 5603-451-051
