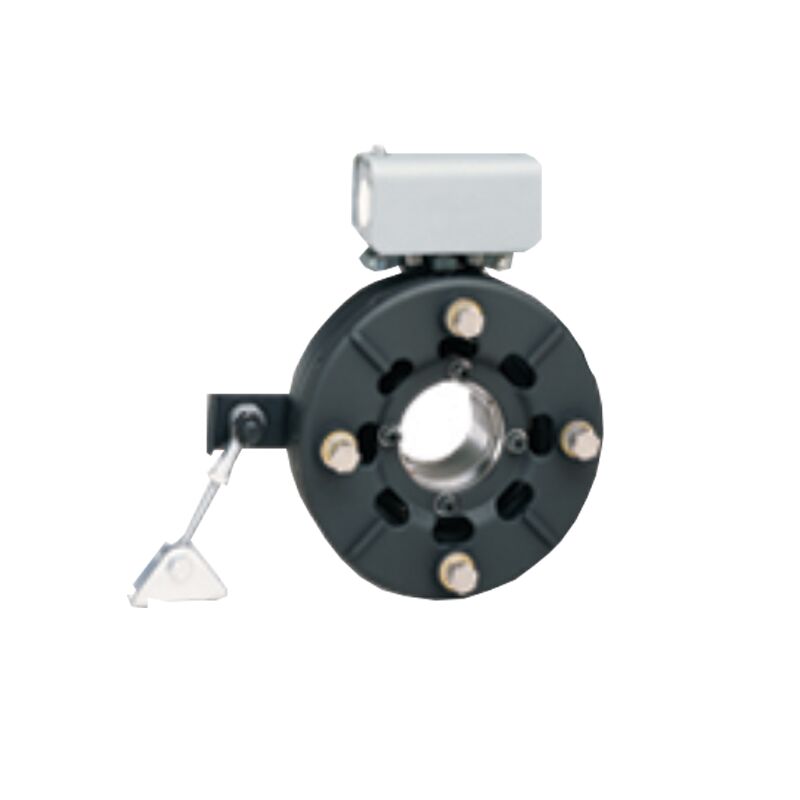

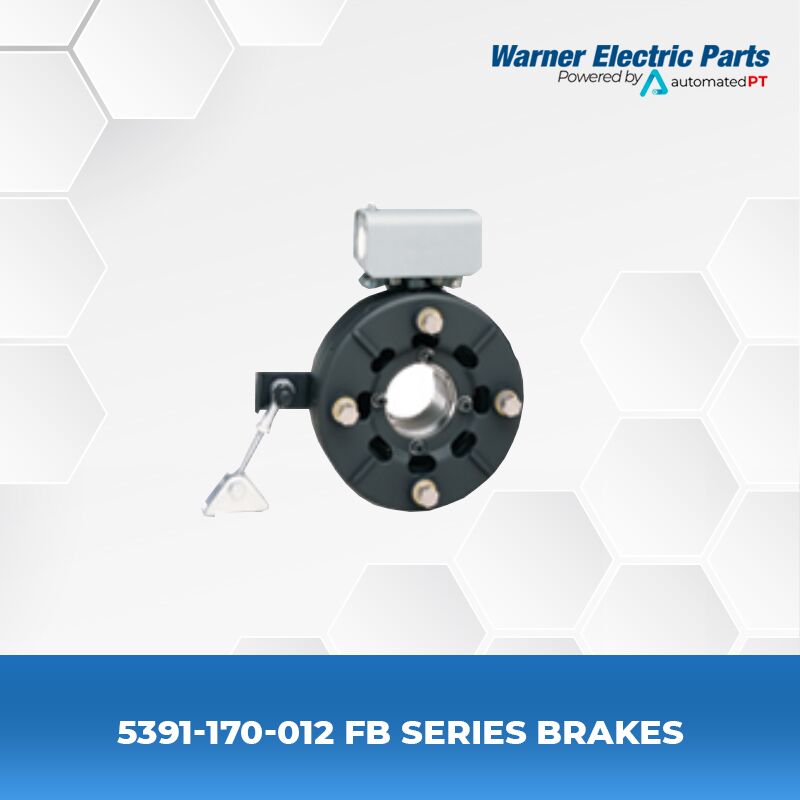

Warner Electric 5391-170-012 FB Series Brakes

$2,185.63

  • 5391-170-012
  • FB Series
  • Model Size: FB-475
  • Voltage: 24 VDC
  • Static Torque: 21 lb. ft.
  • Max RPM: 4500

SPECIFICATIONS

Model Number 5391-170-012 (FB-475-1)
Series FB Series Electrically Released Brakes
Voltage 24 VDC
Static Torque 21 lb. ft.
Maximum Speed 4500 RPM
Bore Size 1.000 in (1″)
Keyway 1/4 x 1/8 in

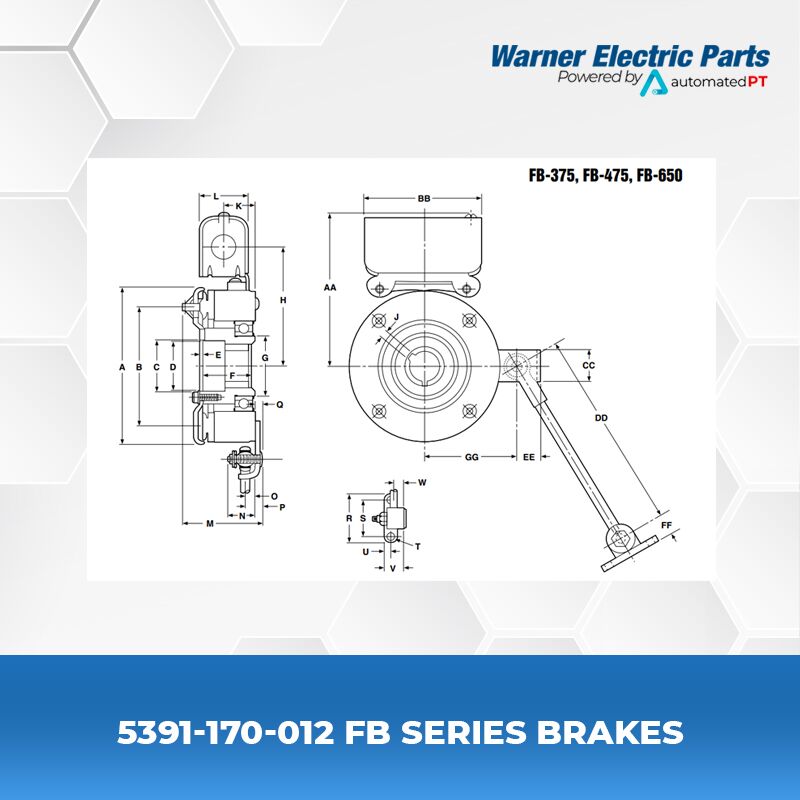

Mounting Type Shaft Mounted (FB-475 Model Size)



pdf icon 1
Catalog Warner Electric Permanent Magnet Electrically Released Brakes Catalog
Service Parts Warner Electric FB Series Service Parts Catalog

SERIES DESCRIPTION

The Warner Electric FB Series Electrically Released Brakes utilize permanent magnet technology to provide reliable, fail-safe braking. The brake remains engaged until the specific DC voltage is applied to the electromagnetic coil, creating an opposing magnetic field that releases the armature.

The 5391-170-012 is an FB-475 model size configured for 24 VDC operation with a 1-inch bore. This unit provides significant holding power in a compact, shaft-mounted package, making it ideal for 24V industrial automation and mobile equipment.

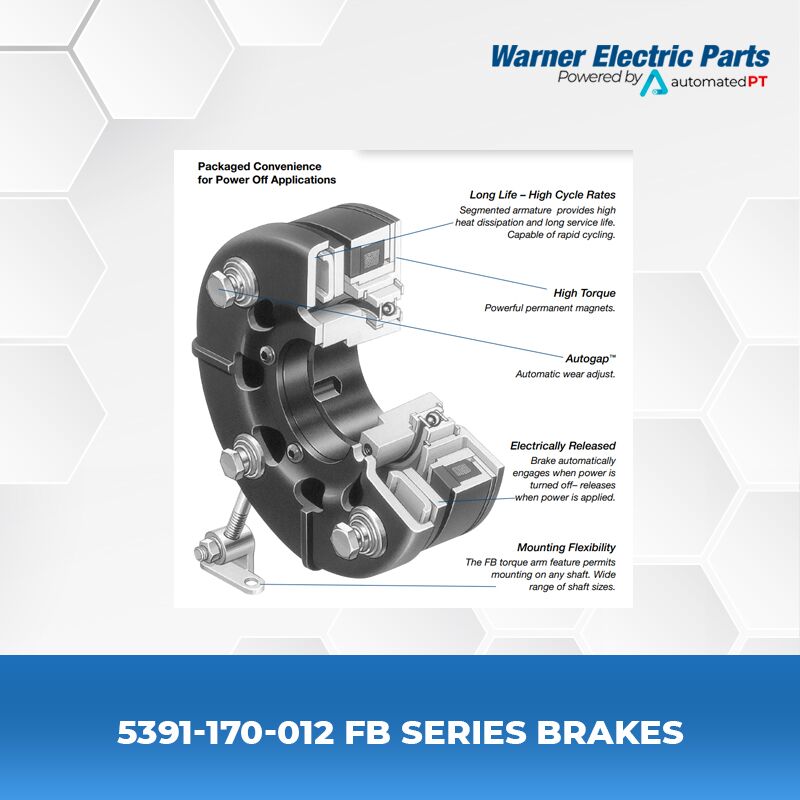

Key Features

  • 24V Low Voltage Design: Safely integrates with PLC and modern DC-bus industrial control systems.
  • Autogap™ Technology: Automatically maintains the proper air gap as friction surfaces wear, ensuring consistent performance without manual adjustment.
  • Fail-Safe Protection: Instant engagement upon power loss ensures the load is held securely in position.
  • Segmented Armature: Allows for superior heat dissipation, extending service life in high-cycle applications.

Technical Alert
This is a 24V DC component. Applying 90V to this unit will cause immediate and permanent coil failure. Ensure your power supply is regulated to the correct voltage before installation.
