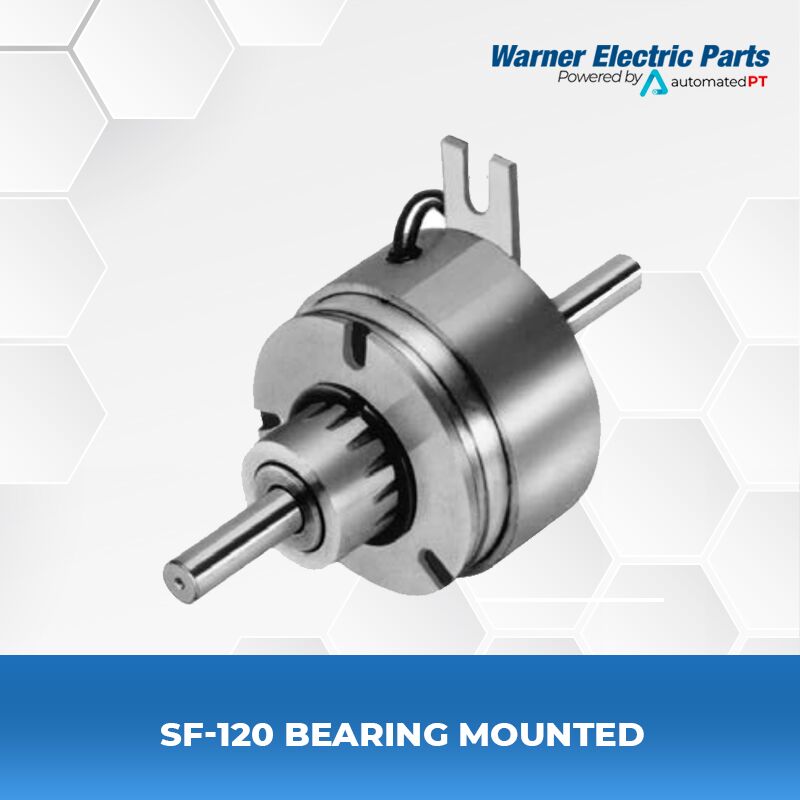

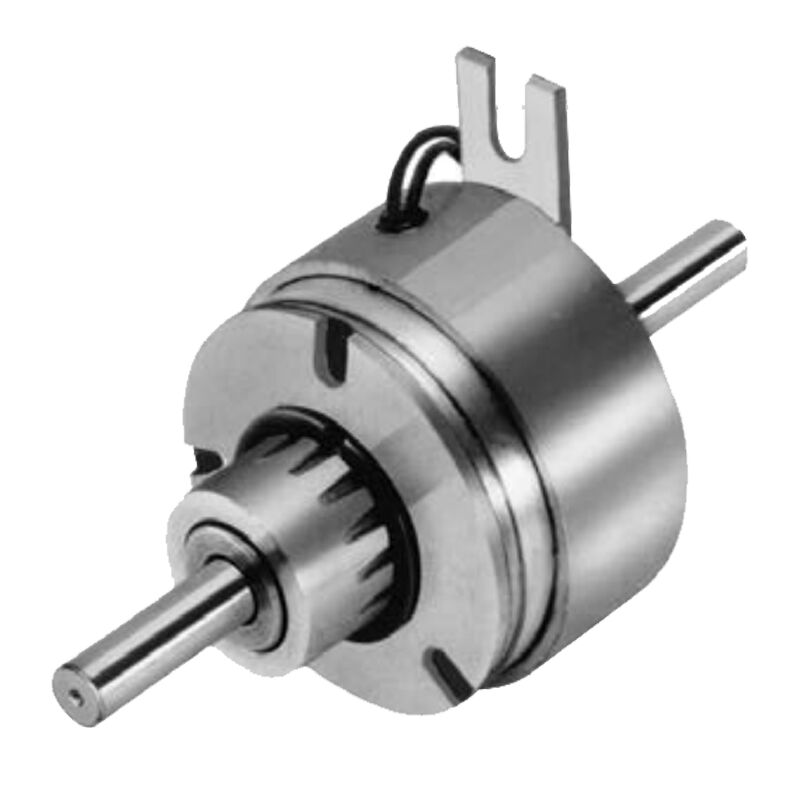

Warner Electric SF-120 Bearing Mounted

  • SF Series
  • Voltage: 6/24/90 VDC
  • Static Torque: 5 lb.in
  • Max RPM: 3,600 rpm
  • Shaft Size: .188/.187- .313/.312
  • Armature Bore: .195/.190- .257/.252

The SF design eliminates collector rings and brush-holder. Ideal for adverse environmental conditions. Mounting tolerances are generally more critical than the PC design.

SPECIFICATIONS

Model Name SF-120 Bearing Mounted
Function Stationary Field Clutch
Static Torque 5 lb.in.
Max. RPM 3,600 rpm
Standard Voltage DC 6, 24, 90
Outside Diameter 1.25 Inches
Overall Length 1.5 Inches

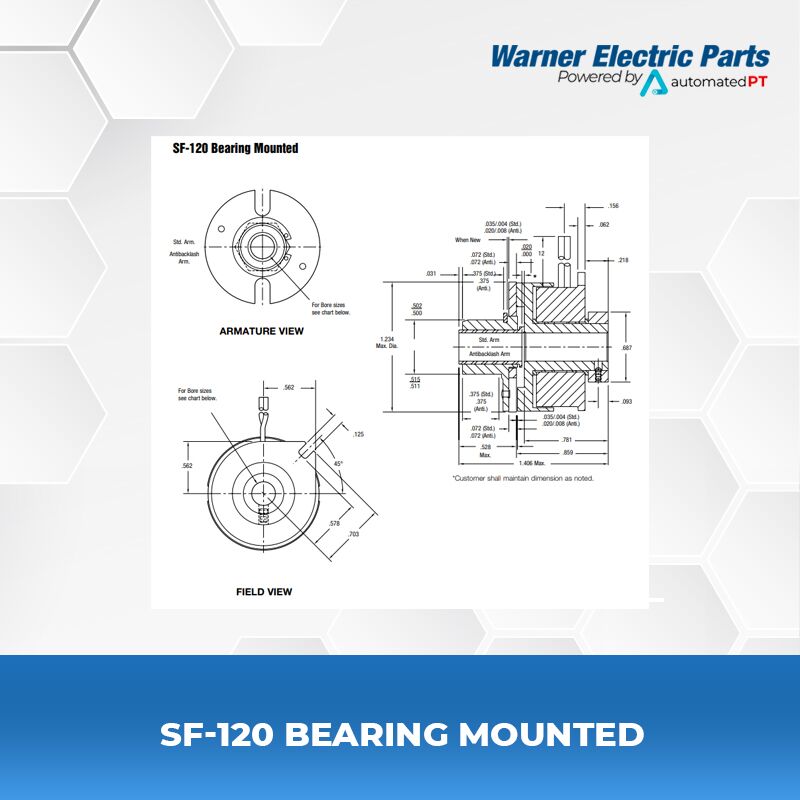

Manufacturer Drawing I-25509

SERIES DESCRIPTION

Custom design brakes and clutches are user-assembled from standard components for optimum performance in the smallest possible package size.

  • Easily adaptable to any mounting requirement
  • Low initial cost
  • Wide range of models and options

CATALOG & MANUALS

pdf icon 1
Catalog Warner Electric Basic Design Clutches Brakes Catalog
Users Manual / Installation Instructions Warner Electric SF-120 Users Manual / Installation Instructions
Quick Information Warner Electric SF-120 Normal Duty Quick Info

HOW TO ORDER

(Please provide the following with your quote request)

1. Specify Type of Armature Desired.
2. Specify Bore Size for Item 1A-1 or 1B and Item 2.
3. Specify Voltage for Item 3.
4. See Controls Section.

Example:
SF-120 Clutch per I-25509 – 90 Volt Standard Armature 1/4” Armature Hub Bore

Warner Electric SF Series 120 BM

Warner MB Series Controls

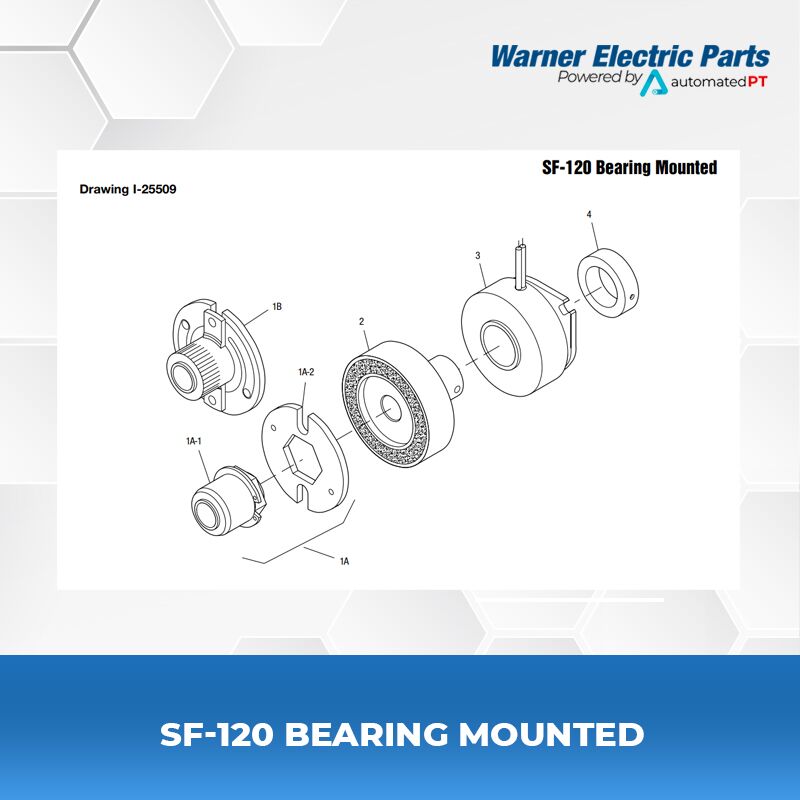

SF-120 Bearing Mounted Parts List
Item Description Part Number Qty.
1A Armature and Hub
1A-1 Armature Hub 1
3/16″ Bore 5602-541-009
1/4″ Bore 5602-541-008
1A-2 Armature 110-0110 1
1B Antibacklash Armature 1
3/16″ Bore 5602-111-002
1/4″ Bore 5602-111-003
5/16″ Bore 5602-111-007
2 Rotor 1
3/16″ Bore 5602-751-008
1/4″ Bore 5602-751-006
5/16″ Bore 5602-751-007
3 Field 1
6 Volt 5602-451-021
24 Volt 5602-451-023
90 Volt 5602-451-025
4 Set Collar 5602-266-001 1
